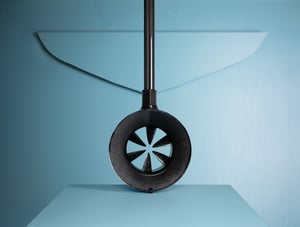

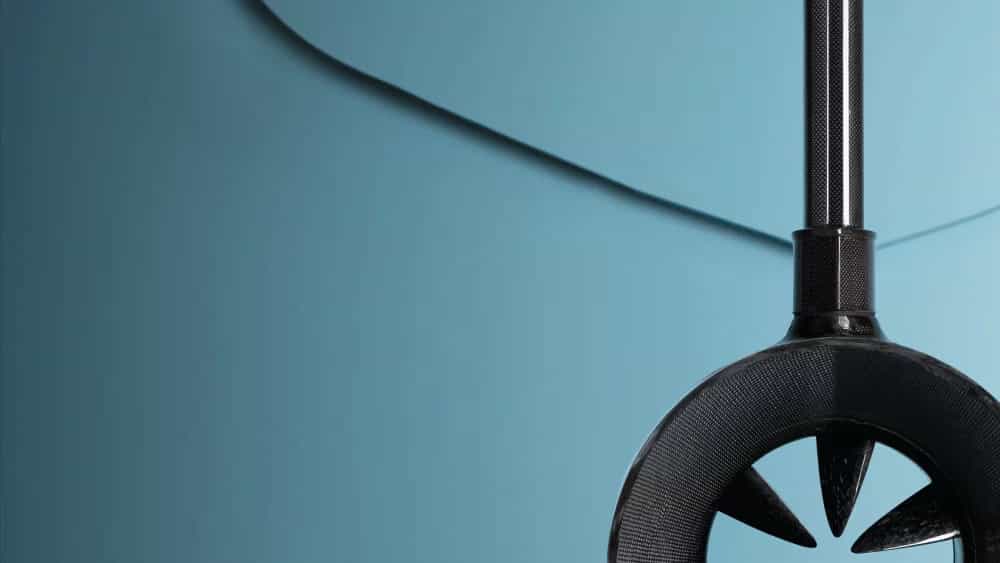

Hy.G 14 kW pod motor
Input power: 16 kW
Status:
available
Shipping:
3-4 weeks
14.299,00 €
incl. 19% VAT
, excl.
Pod motor with 14 kW power, suitable for sailboats up to approximately 9,000 kg displacement. The motor with remote control from Hy.Generation is compatible with 48 V Hy.G batteries such as the Hy.G 14.
The thrust is comparable to a 40 hp gasoline engine. The remote control has an onboard computer with display and GPS.
Also available as an outboard motor.
Product configurator
Pod motor
1 x Hy.G 14 kW Pod
available
16 kW
€14,299.00
Selected
Motor
1 x Hy.G 14 battery pack
available
16.14 kWh
€14,299.00
Selected
2 x 48V 200Ah LiFePO4
available
10,24 kWh
€6,398.00
Battery
1 x Hy.G 2900W charger
available
2.900 W
incl.
Selected
Accessories
Digital Yacht veKonvert NMEA 2000
available
€230.00
Optional
Summary
1 x Hy.G 14 kW Pod
€14,299.00
1 x Hy.G 14 battery pack
€14,299.00
1 x Hy.G 2900W charger
incl.
Total price
€28,598.00
Properties Hy.G 14 kW Pod
Input power
16 kW
comparable performance
40 PS
shaft power
14 kW
thrust
240 lbs
Voltage
48 V
rotations per minute
1200 rpm
weight
28 kg
Noise level
almost silent
Recuperation
yes
saltwater resistant
yes
cooling
water
propeller
carbon
maximum boat weight
9000 kg
-
The ring motor has advantages in overgrown waters or areas with many anglers. Due to its construction, nothing can get caught on a propeller shaft and disable the motor.
-
If a single propeller blade is defective, it can be easily replaced within a few seconds.
-
The Hy.G. motors are also designed for use in salt water.
Comfort of the Hy.G 14 kW Pod
-
Low weight of 28 kg and narrow dimensions, also good for installation.
-
Stepless speed control ensures efficient operation and easy maneuverability.
-
Also available as a rotatable pod motor or outboard motor
-
Visually, the engines are quite impressive thanks to the use of carbon!
Comparison of 15 kW pod motors
|
|
|
|
|
|
|
|
|
|
Hy.G 14 kW Pod | Aquamot Trend 15.0FM | Aquamot F150e | Mitek 15 Pod | E-Tech 15 POD | Rim Drive Pod 15 | SeaDrive Pod 15 | |
| Price | 14.299,00 € | 7.099,00 € | 11.299,00 € | 15.999,00 € | 11.899,00 € | 13.999,00 € | On request |
| Availability |
available
|
available
|
available
|
available
|
available
|
available
|
available
|
| Shipping | 3-4 weeks | 3-4 weeks | 3-4 weeks | 2-3 weeks | 3-4 weeks | 3-4 weeks | 3-4 weeks |
| Input power | 16 kW | 15 kW | 16.3 kW | 15 kW | 15 kW | 15 kW | 15 kW |
| comparable performance | 40 PS | 30 PS | - PS | 20 PS | - PS | 28 PS | 15 PS |
| weight | 28 kg | 45.2 kg | 47 kg | - kg | - kg | 22 kg | 45 kg |
| rotations per minute | 1200 rpm | 1500 rpm | 1500 rpm | - rpm | - rpm | 1500 rpm | 1700 rpm |
| Recuperation | yes | no | no | no | optional | yes | optional |
14 kW pod motor from Hy.G
Due to the current cookie settings, the Youtube video cannot be displayed.
-
High efficiency, only slightly higher than with normal electric motors with shaft
-
Recuperation possible while sailing or standing still in the water. The batteries slowly recharge during the ride from 4 knots. However, the braking water resistance should not be forgotten.
-
You can freely choose the direction of rotation of the motors, which optimizes maneuverability, especially in dual motor configurations
-
All parts are actually manufactured in Europe (France), so Hy.G can guarantee a consistently high quality.
Which power for which boat?
Travel time and range depend on the battery. In an example with an 8,000 kg boat and a 20 kWh battery, we have the following measurements:
✓ At full load, the battery lasts just under an hour and the boat reaches a speed of 14 km/h. The range was 14 km.
✓ At 1/2 power (7,000W), the driving pleasure lasts for a 3-hour trip on the water at a marching speed of 10 km/h and a range of 30 km.
✓ Those who plan longer and more leisurely tours on the water can go much further with less power. At 1/4 power (3,500W), a speed of 8 km/h was reached for 5 hours. So a total range of 40 km with just one battery charge.
Hy.Generation batteries
The Hy.G battery is a perfectly pre-configured battery for the 14 kW electric motors from Hy-Generation. One advantage of the pre-wired system is the true plug & play connection for easy installation. On request, up to 10 modules can even be used simultaneously - depending on the desired range.
The batteries are supplied including 3m cable, a circuit breaker, a fuse and a Victron Bluetooth measuring shunt.
Advantages of Hy.Generation batteries
-
100% maintenance-free: no effort required to maintain the battery.
-
Very durable with at least 3,000 cycles at 90% depth of discharge or more
-
IP66 protected against splashing water and suitable for use on the boat.
-
Safe and non-flammable lithium iron phosphate technology (LiFePO4).
-
Due to the weight of the batteries, they are no longer suitable for mobile use, but only for fixed installation.
The manufacturer Hy.G from France
The French company Hy.Generation offers electric boat motors with a power range from 6 kW to 30 kW. The existing products are constantly being further developed and new variants are regularly added.
The development of the special motors began in 2018 and the first prototype was officially confirmed in 2020. Since then, many projects have been implemented and new models have always been developed - most recently an upgrade to 14 kW and soon 30 kW will also be added.
