veKonvert brings NMEA 2000 to Victron's popular SmartShunt battery monitoring system - your navigation display becomes an energy management system.


Digital Yacht veKonvert NMEA 2000 Functionality

veKonvert is a new standalone NMEA 2000 interface developed in collaboration with Victron Energy to integrate VE.Direct compatible devices such as SmartShunt, BMV battery monitors, and MPPT solar charge controllers into NMEA 2000 systems.

This functionality already existed, but required the use of an advanced Cerbo module. veKonvert is a more cost-effective, simpler solution for smaller installations that only need to display electrical data on a multifunction display (MFD).

Digital Yacht veKonvert NMEA 2000 Functionality

NOTE on Digital Yacht veKonvert NMEA 2000

veKonvert is not compatible with Victron chargers and inverters. It should also not be connected to the VE.Direct interfaces of Victron 'consumers' such as Multiplus, Quattro, Cerbo, etc.

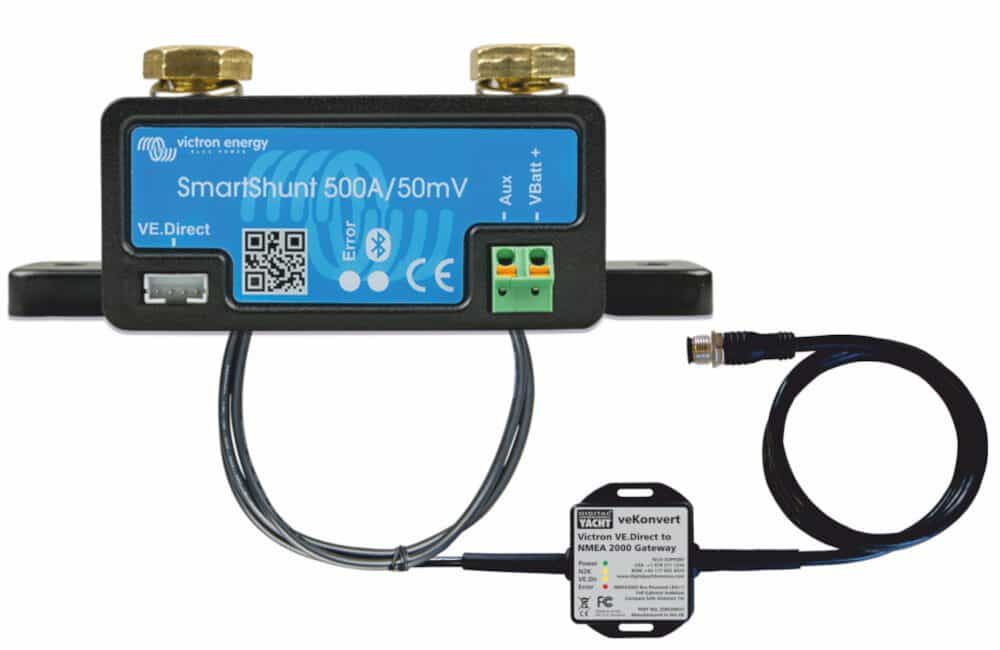

The installation is easy - simply connect the 'T' to the NMEA 2000 backbone and the VE.Direct connection of the SmartShunt and you will have battery and electrical data in your NMEA 2000 network!

Victron NMEA 2000 interface

Boaters and boat builders prefer a clear and organized dashboard or navigation area, so integrating electrical data into the main navigation display is a popular and cost-effective option.

The product is a collaboration between Victron Energy and Digital Yacht. The system uses the Victron proprietary VE.Direct data connection as the source for NMEA 2000 data. Victron solar panel controllers (MPPTs) and battery monitors can now also be connected to NMEA 2000 via the veKonvert interface.

Victron NMEA 2000 interface

Compatibility of the Digital Yacht veKonvert NMEA 2000

  • Universal NMEA 2000 gateway for Victron products with VE.Direct interface (see compatibility list)

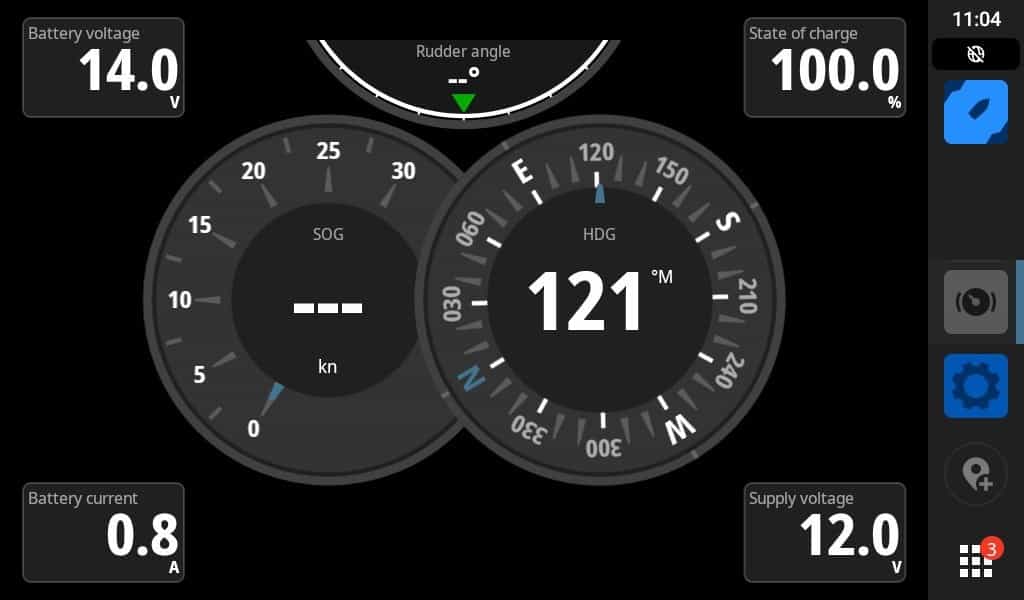

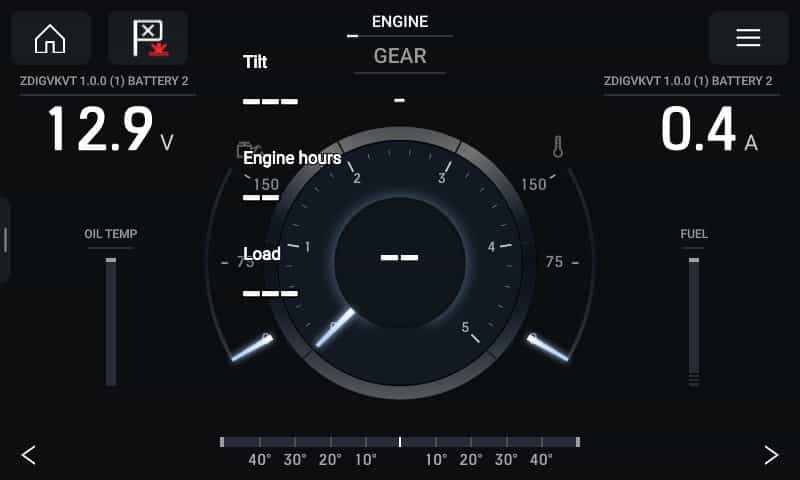

  • Allows battery management or monitoring of solar charging on compatible multifunction displays (Raymarine, Garmin, Navico, Furuno, etc.)
  • Delivers battery voltage, charging/discharging current, state of charge and time until depletion based on an advanced algorithm
  • Easy installation, plug 'n' play connectivity and

  • Self-sufficient power supply via the NMEA 2000 bus
  • Self-sufficient power supply via the NMEA 2000 bus
Compatibility of the Digital Yacht veKonvert NMEA 2000
