ePropulsion NMEA2000 interface
Status:
available
Shipping:
2-3 working days
199,00 €
incl. 19% VAT
, excl.

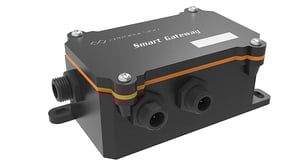

The Smart Gateway RS-485 to N2K (NMEA2000) is used to monitor the status information of the EVO drive systems from ePropulsion. The compact device is installed between the throttle and the motor.
This includes, among other things, gear status, motor clamp voltage, motor speed, battery temperature, state of charge (SOC), and speed over ground (SOG).
What information can be shared?
This includes, among other things, transmission status, engine terminal voltage, engine speed, battery temperature, state of charge (SOC), and speed over ground (SOG). This information is transmitted to external devices via the NMEA-2000 network.
What interfaces are available?
The Smart Gateway features three RS485 interfaces and one CAN interface. The RS485 interfaces connect it to the 485 network of the drive system, while the CAN interface allows integration into the NMEA-2000 network.
The new Smart Gateway enables owners of ePropulsion Spirits, Navy, and Pod motors to seamlessly communicate with external multifunction displays (MFDs) via NMEA 2000. The first fully compatible displays are the Nextfour Q Experience and Raymarine devices, which offer comprehensive integration with the entire ePropulsion motor range.
Installation of ePropulsion NMEA2000 interface
The Smart Gateway is particularly user-friendly and easy to install. With a size of only 8.9 x 5 cm and a weight of just 140 grams, the compact device is installed between the throttle and the engine. An additional connection allows for linking to a display.
After integration with the Q Experience or Raymarine Axiom, information such as the battery state of charge (SOC) and the motor performance of the ePropulsion system is seamlessly displayed, providing users with an exceptional overview of the operational status.
How does the order process work?
Simply click on "Add to cart". In the next step, enter your personal data and choose your preferred payment method.
As a specialist dealer, we will check your order and send you an order confirmation and invoice. After receipt of payment, we will send the desired items directly to the desired delivery address.
Within Germany, the delivery time is 3-4 working days. Of course, you will also receive a tracking link for your order.
Afterwards, we are always available personally for questions about assembly. Of course, we also provide instructions, tips and soon also explanatory videos.
For all products in our range, we offer a 2-year warranty - for some products even more.
In case of complaints, we are your contact person, we help you to ensure that everything runs smoothly. You can always reach us by email or phone. We also provide support for possible spare parts at any time. Your boat is our drive.
