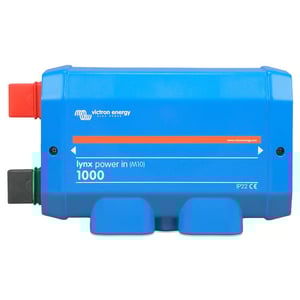

Victron Lynx Power In (M10)
Status:
available
Shipping:
1-3 days
€152.00
incl. 19% VAT
, excl.
Modular DC busbar: The Victron Lynx Power In (M10) connects up to four batteries or loads, supports 9-60 V and up to 1000 A continuous current – ideal for off-grid, marine & solar systems.
About the Power In (M10)
-
Contributing to the Lynx distribution system
-
Multiple system options and connections
-
Positive and negative busbar
-
4 ports for loads, batteries, etc.
-
Easy installation
-
VictronConnect App
-
Monitoring
The Lynx distribution system
The system is a modular busbar system that includes DC connections, distributors, fuses, battery monitoring, and/or functions for managing lithium batteries. It consists of the following components:
The Lynx distribution system
-
Lynx Power In - Positive and negative busbar with four connections for batteries or DC devices
-
Lynx Distributor - Positive and negative busbar with four fused connections for batteries or DC devices and fuse monitoring
-
Lynx Distributor - Positive and negative busbar with four fused connections for batteries or DC devices and fuse monitoring
-
Lynx Smart BMS - For use with Victron Energy Lithium Battery Smart batteries, Bluetooth communication via VictronConnect App or with a GX device, available as a 500 A model with M8 busbars or a 1000 A model with M10 busbars
The VictronConnect App
The app is essential for setup and monitoring! The following connection options are available: Bluetooth / USB, via the optional interface / remotely via a GX device and the VRM portal
The app is available for the following platforms: Android / Apple IOS (USB is not supported, only Bluetooth connection is possible) / MacOS / Windows (Bluetooth is not supported, only USB connection is possible)
You can download the app from the respective app stores or from the Victron product page. Alternatively, a QR code is available. You can also find instructions for VictronConnect in the attachment.
Technical data
-
Voltage range: 9-60V DC
-
Rated current: 1000A DC uninterrupted
-
Operating temperature range: -40°C - +60°C
-
Storage temperature range: -40°C - +60°C
-
Protection rating: IP22
-
Weight: 2.1 kg
-
Dimensions: 290 x 170 x 80 mm
-
Dimensions of the busbar: 8 x 30 mm
-
Housing material: ABS plastic
-
Busbar material: tinned copper
Victron_Lynx-Power-In_Manual
Victron_Lynx-Power-In_Manual
Victron_Lynx-DC-Distribution_CE
Victron_Lynx-Power-In_Dimensions
