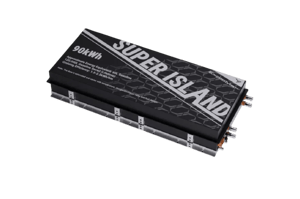

ExploMar NMC BATTERY 90 kWh
capacity: 90 kWh
Status:
available
Shipping:
2-3 months
€37,789.00
incl. 19% VAT
, excl.

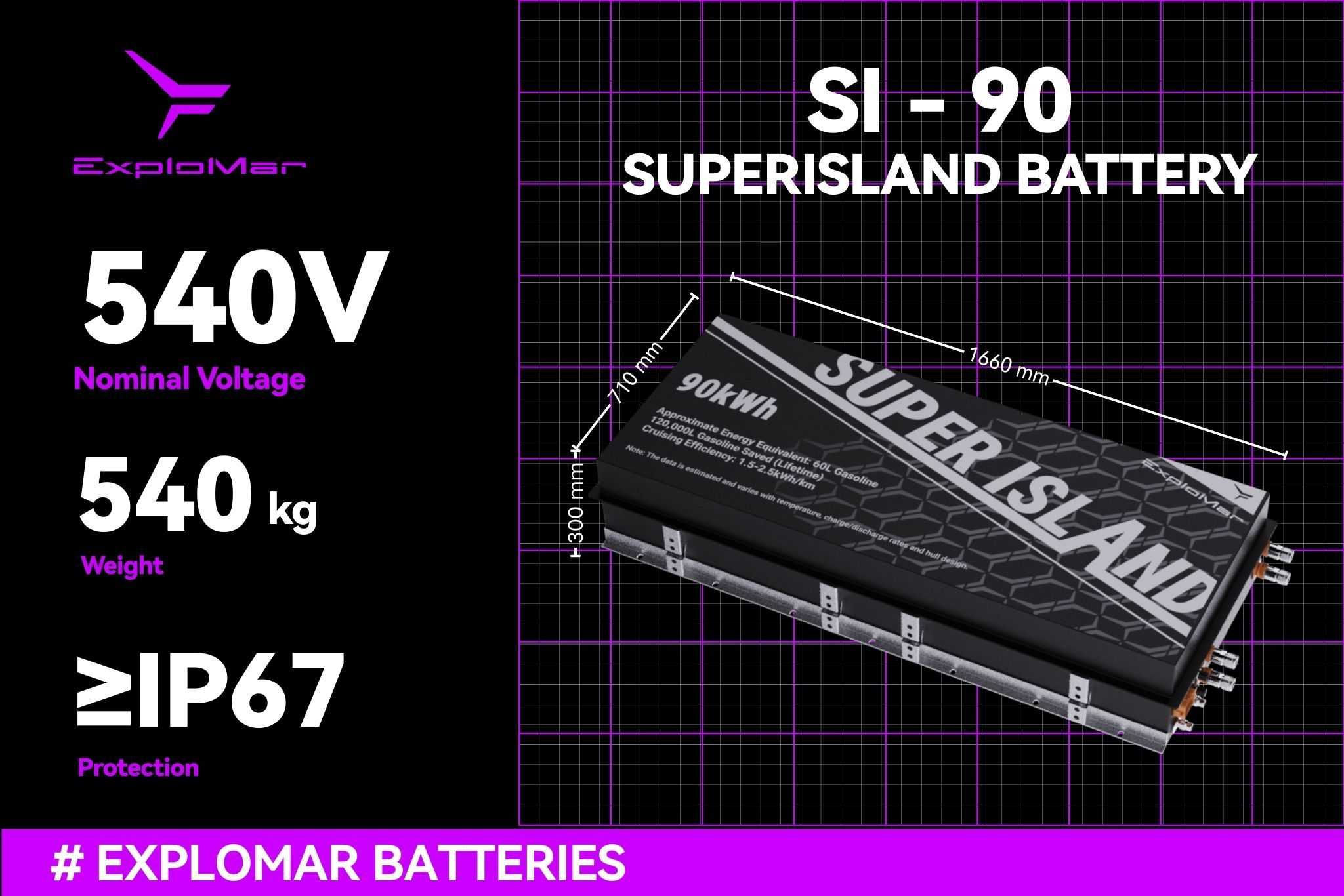

ExploMar SI‑90 battery (90 kWh) for electric outboard motors – high energy density, 540 V NMC pack, IP67 protection, integrated temperature management and modular expandability.
Properties ExploMar NMC BATTERY 90 kWh
Voltage
540 V
Nominal Voltage
540 V
ampere-hours
167 Ah
capacity
90 kWh
Discharge depth
80 %
eff. Capacity
90 kWh
max. charge current
167 A
max discharge current
167 A
max. discharge power
90 kW
self discharge / month
3 %
cell technology
NMC
Warranty
5 Years
weight
540 kg
Shipping weight
540 kg
Dimensions (LxWxH)
166x71x30 cm
Protection Class
IP67
length
1660 mm
width
710 mm
height
300 mm
Bluetooth
Yes
max. number in row
1
Parallel connection possible?
Yes
Max. number in parallel
3
Heating function
Yes
integrated BMS
Yes
temperature range
-20°C to 55°C °C
