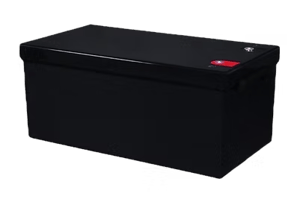

Green Marine 48V 100Ah (GM5120)
capacity: 5,12 kWh
Status:
available
€2,399.00
incl. 19% VAT
, excl.
Suitable lithium drive battery with 48 V and 100 Ah from Green Marine for the Green Marine inboard motors. Modern LiFePo4 technology - up to 100% discharge and 5000 cycles at 80% discharge. Enormous reliability for boats and also for caravans.
Product configurator
Lithium
1 x Green Marine 48V 100Ah
available
5.12 kWh
€2,399.00
Selected
Battery
1 x 48V 18A charger 900W
available
900 W
€229.00
Selected
1 x ACES charger 48V/25A 1350W
available
1.350 W
€449.00
1 x ACES charger 48V/35A 2000W
available
2.000 W
€599.00

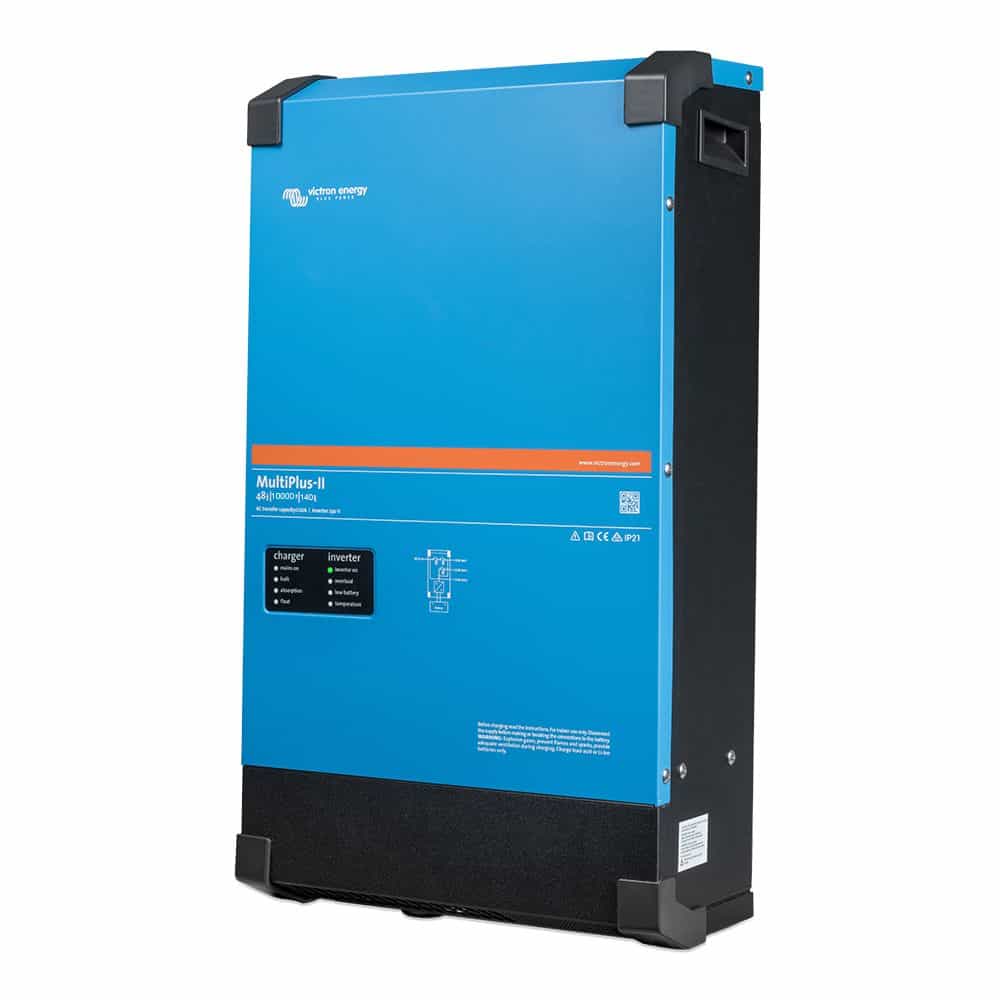

1 x Victron MultiPlus-II 48/3000/35-32 230V
available
2.400 W
€629.00
1 x Victron MultiPlus-II 48/5000/70-50 230V
available
4.000 W
€899.00
1 x ACES charger 48V/50A 3300W
available
3.300 W
€999.00
Accessories
Main switch 48V
available
€49.00
Optional
Battery Monitor BMV-700
available
€114.00
Optional
ECTIVE BM X Battery Monitor
available
€169.00
Optional
Summary
1 x Green Marine 48V 100Ah
€2,399.00
1 x 48V 18A charger 900W
€229.00
Total price
€2,628.00
Properties Green Marine 48V 100Ah
Voltage
48 V
Nominal Voltage
51.2 V
ampere-hours
100 Ah
capacity
5.12 kWh
Discharge depth
100 %
eff. Capacity
2.56 kWh
max. charge current
50 A
max discharge current
150 A
max. discharge power
5.12 kW
self discharge / month
3 %
cell technology
LiFePO4
cycles
5000
Warranty
5 Years
weight
39.8 kg
Protection Class
IP67
length
520 mm
width
269 mm
height
220 mm
row setup possible?
Yes
charge characteristic
CCCV / IU
installation type
ready-to-connect complete system
integrated BMS
Yes
LiFePO4 from Green Marine
Green Marine works with lithium iron phosphate (LiFePO4) because, compared to other lithium battery technologies, it offers good energy density, long lifespan, and increased safety. Additionally, LiFePO4 contains no cobalt.
Green Marine 48V 100Ah lifespan
Due to the battery technology and design, the battery has a lifespan of 5000 cycles at a depth of discharge of 80%. The integrated BMS monitors the condition of the battery and balances individual cells to increase lifespan.
Service life Green Marine 48V 100Ah
The Green Marine battery allows a discharge rate of up to 1.5 C. The maximum charging speed is 1 C, so the battery can be fully charged in one hour.
To optimize service life, it is recommended to regularly charge all LiFePO4 batteries at a maximum charging speed of 0.5 C. Combine your battery with a GM charger to achieve the best charging performance.
Charger for Green Marine 48V 100Ah
Based on your requirements, we are happy to advise you on a battery charger optimally suited for your boat. For standard use, our ACES charger is suitable, allowing you to charge your electric boat within a few hours.
But the Victron Multiplus is also a good charger if you want more charging options. And with the 15-meter-long charging cable, you will always find a shore power connection.
How does the order process work?
Simply click on "Add to cart". In the next step, enter your personal data and choose your preferred payment method.
As a specialist dealer, we will check your order and send you an order confirmation and invoice. After receipt of payment, we will send the desired items directly to the desired delivery address.
Within Germany, the delivery time is 3-4 working days. Of course, you will also receive a tracking link for your order.
Afterwards, we are always available personally for questions about assembly. Of course, we also provide instructions, tips and soon also explanatory videos.
For all products in our range, we offer a 2-year warranty - for some products even more.
In case of complaints, we are your contact person, we help you to ensure that everything runs smoothly. You can always reach us by email or phone. We also provide support for possible spare parts at any time. Your boat is our drive.
