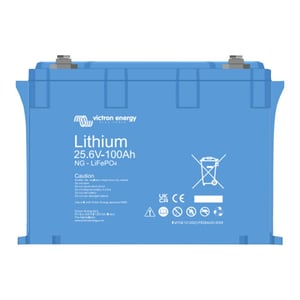

25.6V 100Ah Victron Energy NG Lithium Battery
capacity: 2,56 kWh
Status:
available
Shipping:
3-5 working days
2.049,00 €
1.599,00 €
incl. 19% VAT
, excl.
The new Lithium NG (Next Generation) battery from Victron Energy for boats. Modern and safe LiFePo4 technology - up to 100% discharge and a very high longevity and cycle count.
A shunt is already integrated. Up to 50 batteries can be connected in series. An external BMS is required - the Lynx Smart BMS NG 500A - which must be purchased separately.
Product configurator
Lithium
1 x 25.6V 100Ah Victron Energy NG
available
2.56 kWh
€1,599.00
Selected
Battery
1 x Victron Energy Blue Smart IP67 24/5
available
144 W
€113.00
Selected
1 x Victron Energy Blue Smart IP67 24/8
available
230 W
€149.00
1 x Victron Energy Blue Smart IP67 24/12
available
346 W
€193.00
Accessories
1 x Victron Lynx Smart BMS 500 NG
available
€899.00
Selected
Summary
1 x 25.6V 100Ah Victron Energy NG
€1,599.00
1 x Victron Energy Blue Smart IP67 24/5
€113.00
1 x Victron Lynx Smart BMS 500 NG
€899.00
Total price
€2,611.00
Properties 25.6V 100Ah Victron Energy NG
Voltage
24 V
Nominal Voltage
25.6 V
ampere-hours
100 Ah
capacity
2.56 kWh
Discharge depth
100 %
eff. Capacity
5.12 kWh
max. charge current
100 A
max discharge current
200 A
max. discharge power
2.56 kW
self discharge / month
2%
cell technology
LiFePO4
cycles
2500
Warranty
3 Years
weight
37 kg
Shipping weight
45 kg
Protection Class
IP65
length
341 mm
width
235 mm
height
162 mm
Bluetooth
Yes
row setup possible?
No
max. number in row
1
Parallel connection possible?
Yes
Max. number in parallel
50
installation type
ready-to-use complete system
Heating function
No
integrated BMS
No
special feature
High scalability
Application of 25.6V 100Ah Victron Energy NG
-
The batteries can be connected in parallel up to 50 pieces - thus a battery bank of up to 256 kWh can be built.
-
Integrated shunt: The battery data (voltage, current, and temperature) is transmitted to the BMS and evaluated there, e.g., for calculating the state of charge, which can then be read out via VictronConnect or a Victron GX communication center.
-
Easy installation and protection against slipping and tipping over thanks to the pre-fabricated mount on the battery. Optionally, the batteries can also be secured with straps.
-
Higher energy efficiency compared to the AGM battery.
-
Basically, the Victron lithium batteries can be used on boats, in vehicles, or as solar storage for the solar system. Upon request, the battery can also be sold with 0% VAT.
25.6V 100Ah Victron Energy NG comfort
-
High number of cycles. Up to 2,500 charge cycles at 80% discharge and 25 °C. Even 5,000 cycles at 50% depth of discharge.
-
Expensive? The LiFePo4 are now significantly cheaper to purchase than a few years ago.
-
With only about 7 kg per kWh a very low weight - at the 24 V100 Ah it is only 37 kg.
-
Automatic setup, monitoring, and control via VictronConnect or a GX device and the VRM portal
-
The installation is somewhat more complex than with a battery that has an integrated BMS
Comparison of 24V 100 Ah batteries
|
|
|
|
|
|
|
|
|
25.6V 100Ah Victron Energy NG | Ultimatron 24 V 100 Ah Bluetooth | PERFEKTIUM 25.6V 100Ah Bluetooth | Victron Energy Smart 24V 100Ah | LIONTRON 25.6V 100Ah Bluetooth | 24 V 100 Ah Forster Fishing Battery with Bluetooth | |
| Price | 1.599,00 € | 1.099,00 € | 1.299,00 € | 1.579,00 € | 1.939,00 € | 1.689,00 € |
| Availability |
available
|
available
|
available
|
available
|
upon request
|
available
|
| Shipping | 3-5 working days | 3-5 days | 2-4 days | 3-5 business days | 1-2 weeks | 2-3 workdays |
| capacity | 2.56 kWh | 2.56 kWh | 2.56 kWh | 2.56 kWh | 2.56 kWh | 2.4 kWh |
| weight | 37 kg | 23.5 kg | 22.7 kg | 28 kg | 27.5 kg | 25 kg |
| cycles | 2500 | 3000 | 4000 | 2500 | 3000 | 3000 |
| Warranty | 3 Years | 5 Years | 6 Years | 2 Years | 5 Years | 3 Years |
| Protection Class | IP65 | IP65 | IP65 | IP22 | IP65 | IP67 |
| Bluetooth | Yes | Yes | Yes | Yes | - | - |
Safety of 25.6V 100Ah Victron Energy NG
-
Integrated system (BTV) for monitoring cell balance, temperature, and voltage. Thanks to the control and monitoring, the efficiency of the battery is optimized.
-
Increased protection against water and dust thanks to IP65.
-
Bluetooth monitoring: Cell voltage, temperature, alarm status can be monitored via Bluetooth.
-
Lithium iron phosphate is the safest form of conventional lithium batteries.
-
Can be stored for up to one year with a full charge at 25 °C.

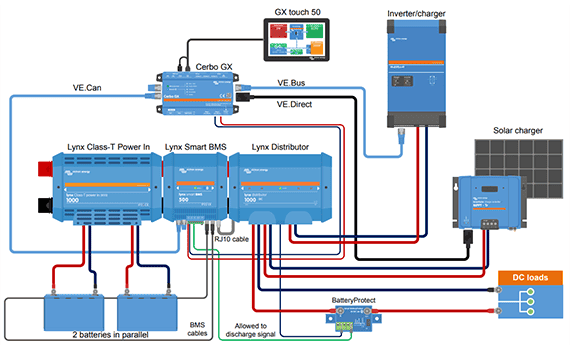

Example system with Victron NG battery and Lynx Smart BMS
Monitoring and control of the 51.2V 100Ah battery from Victron

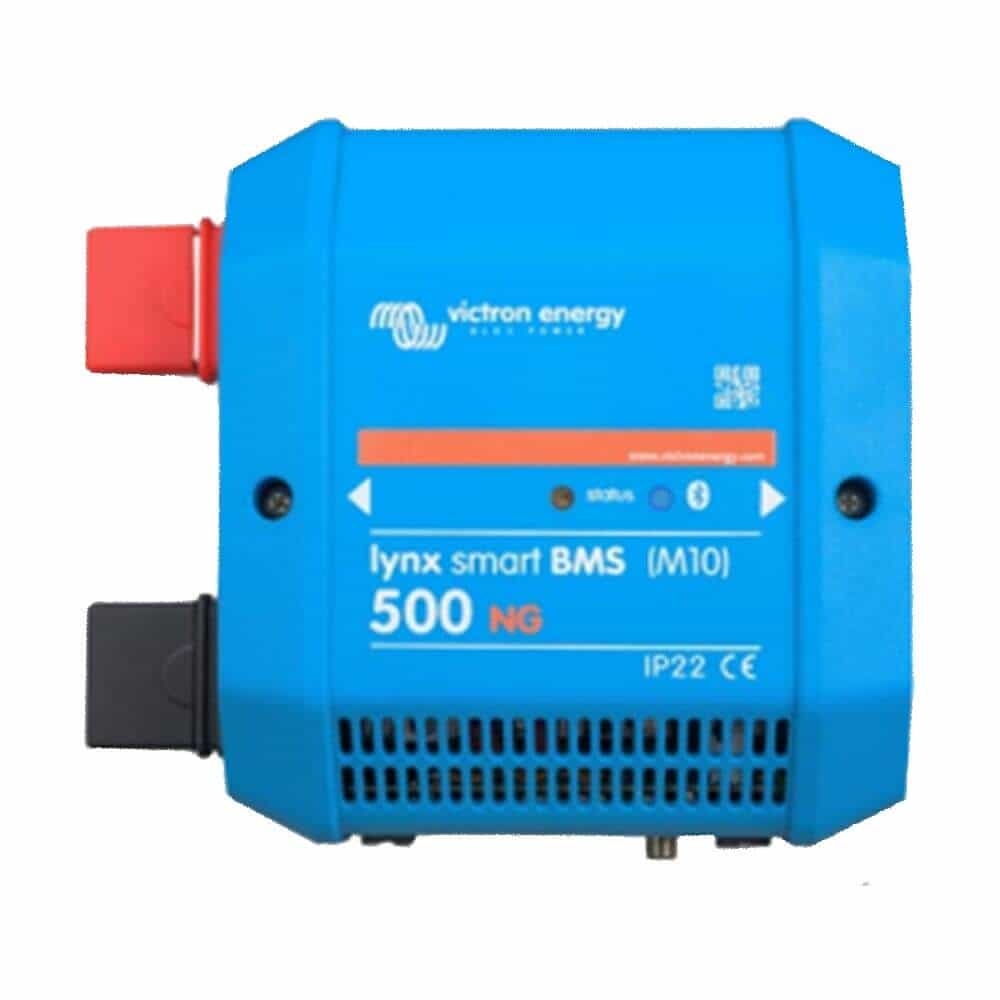

The Battery Management System (BMS) automatically monitors all battery parameters, detects system voltage and the configuration of the batteries. It is required and must be purchased separately, with two available models (Lynx Smart 500A and 1000A).
Monitoring is done via VictronConnect (Bluetooth), a Victron GX communication center, or the VRM portal to monitor parameters such as cell status, voltage, current, and temperature in real-time. Additionally, the BMS automatically updates the firmware of the batteries.
Range and capacity of the 48V 100Ah Smart Bluetooth batteries
The smart Bluetooth lithium batteries with 24 V and 100 Ah are suitable as both consumer and pure drive batteries. Depending on the size of your boat and the desired range, we are happy to determine the required capacity of your Victron lithium batteries.
Compared to conventional AGM technologies, savings in weight and size of the batteries of up to 70% are possible. Therefore, lithium batteries are particularly optimally suited for boats.
The company Victron Energy from Almere in the Netherlands has a wide dealer network and high reliability. Victron offers lead, AGM, and lithium batteries. Suitable chargers, voltage converters, and inverters can also be purchased to match the batteries.
The batteries of the manufacturer Victron
Victron Energy stands for high-quality, reliable technology with a wide range of functions. The Dutch company offers complete packages for onboard power supply or for electric drive. All components are available from a single source if needed.
Innovations made by Victron Energy
The products are characterized by a solid price-performance ratio. The biggest advantage is that a complete system can be delivered from a single source. Especially with more professional systems, there is no way around Victron.
Victron stands for high safety. You receive a Victron warranty worldwide for 2 years. The connection contacts are specially secured. The batteries are of course CE certified and are housed in ABS fireproof containers.
Questions about the 48V Victron battery?
Open questions?
Downloads 25.6V 100Ah Victron Energy NG
Data sheet_Victron_energy_24v_100Ah
Drawing_Victron_energy_24v_100Ah
Handbook_Victron_energy_24v_100Ah
Safety Data Sheet_Lithium-ion-batteries
