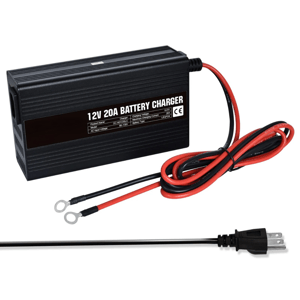

12V 20A lithium battery charger

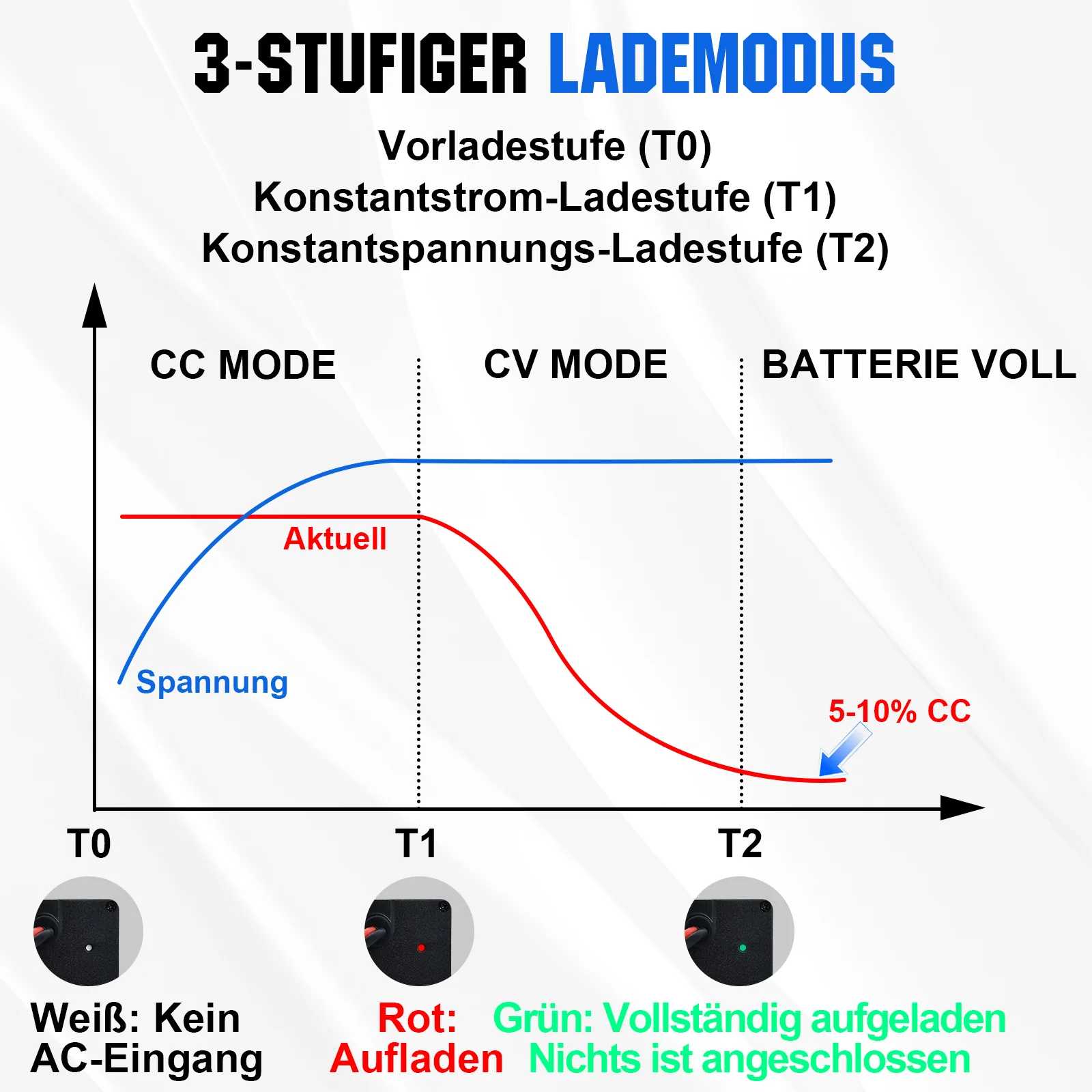

1. Pre-charge stage (T0):

In this initial step, the battery is prepared to the correct voltage. The LED light glows white, indicating that there is no AC input.

2. Constant current charging stage (T1): In this phase, the battery is charged with a constant current. During this process, the light glows red to indicate that the battery is being charged. The voltage increases during charging.

3. Constant voltage charging stage (T2): Here, the voltage is kept constant until the battery is full. The LED light turns green, which means the battery is fully charged or there is no connection.

In summary, the charging process demonstrates a safe and efficient method for charging lithium batteries, ensuring a smooth transition between the phases.

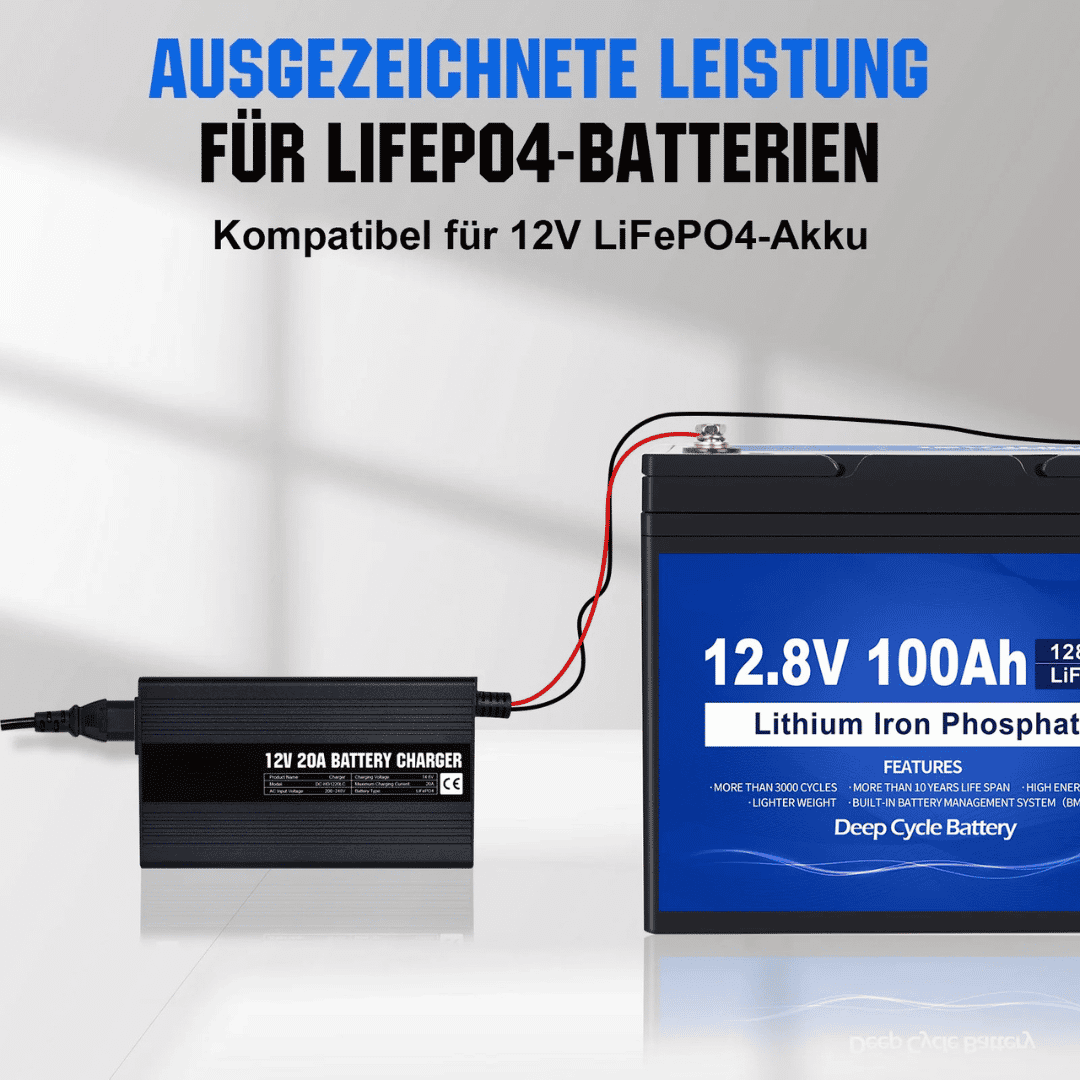

The 12V Lithium LifePO4 charger from Greenboatsolutions is of high quality and comes with a robust power cable as well as a battery charging cable. Its technical specifications are optimally tailored to the charging needs of lithium iron phosphate batteries. 🔋

With a maximum charging voltage of 14.6 volts, this charger offers an extremely effective solution for charging lithium iron phosphate batteries. Compared to lead-acid batteries, it clearly shows advantages in charging speed. An extremely practical charger for lithium batteries. ⚡

This lithium battery charger automatically activates lithium batteries. The intelligent charger from Greenboatsolutions offers numerous protection mechanisms that effectively guard against overvoltage, overcurrent, short circuit, and overheating. 🔒

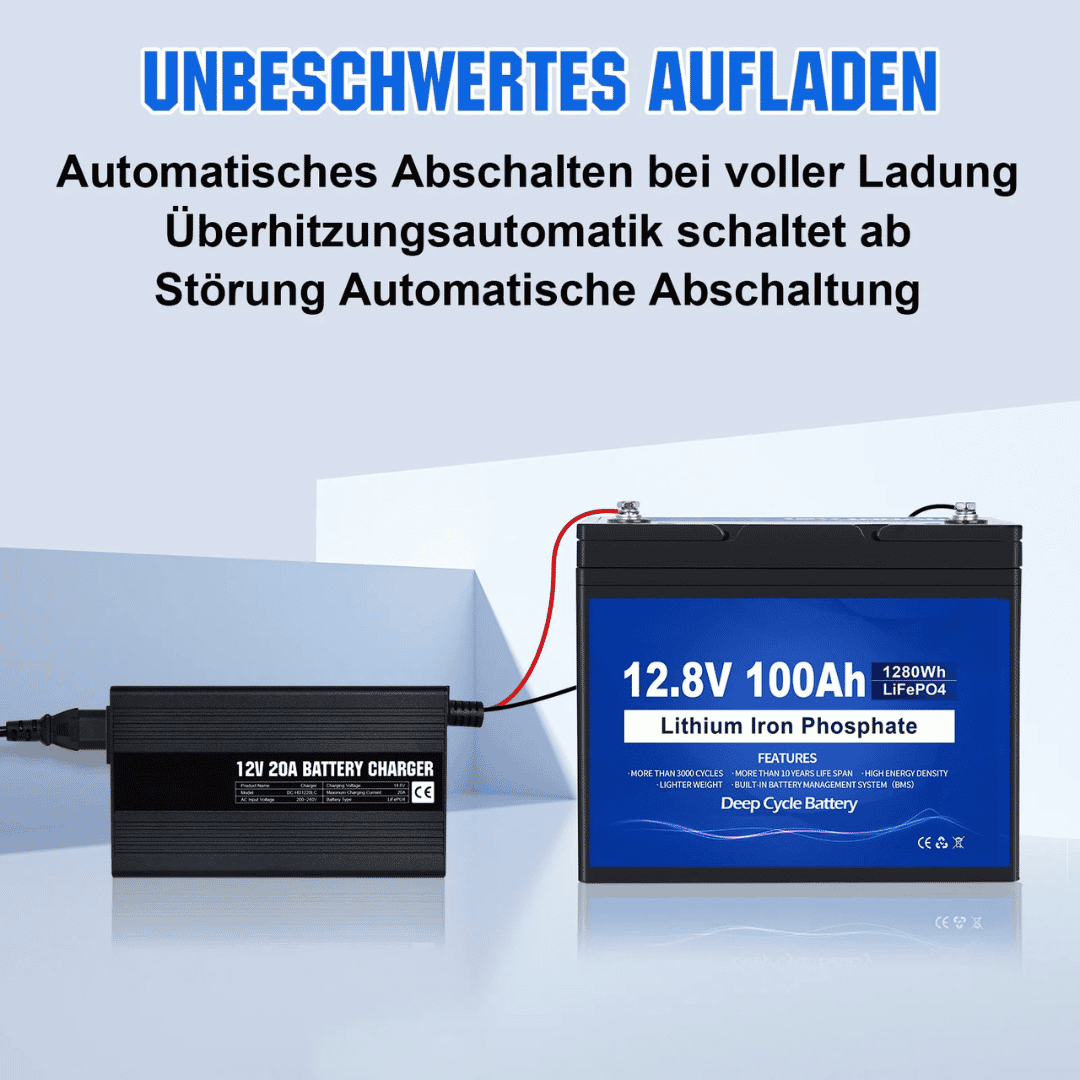

In addition to an automatic shut-off function when fully charged, it features a zero-volt wake-up mode. If a lithium LifePO4 battery is locked by the BMS system, the charger can reactivate the battery and reset it to the normal voltage level. ⚡

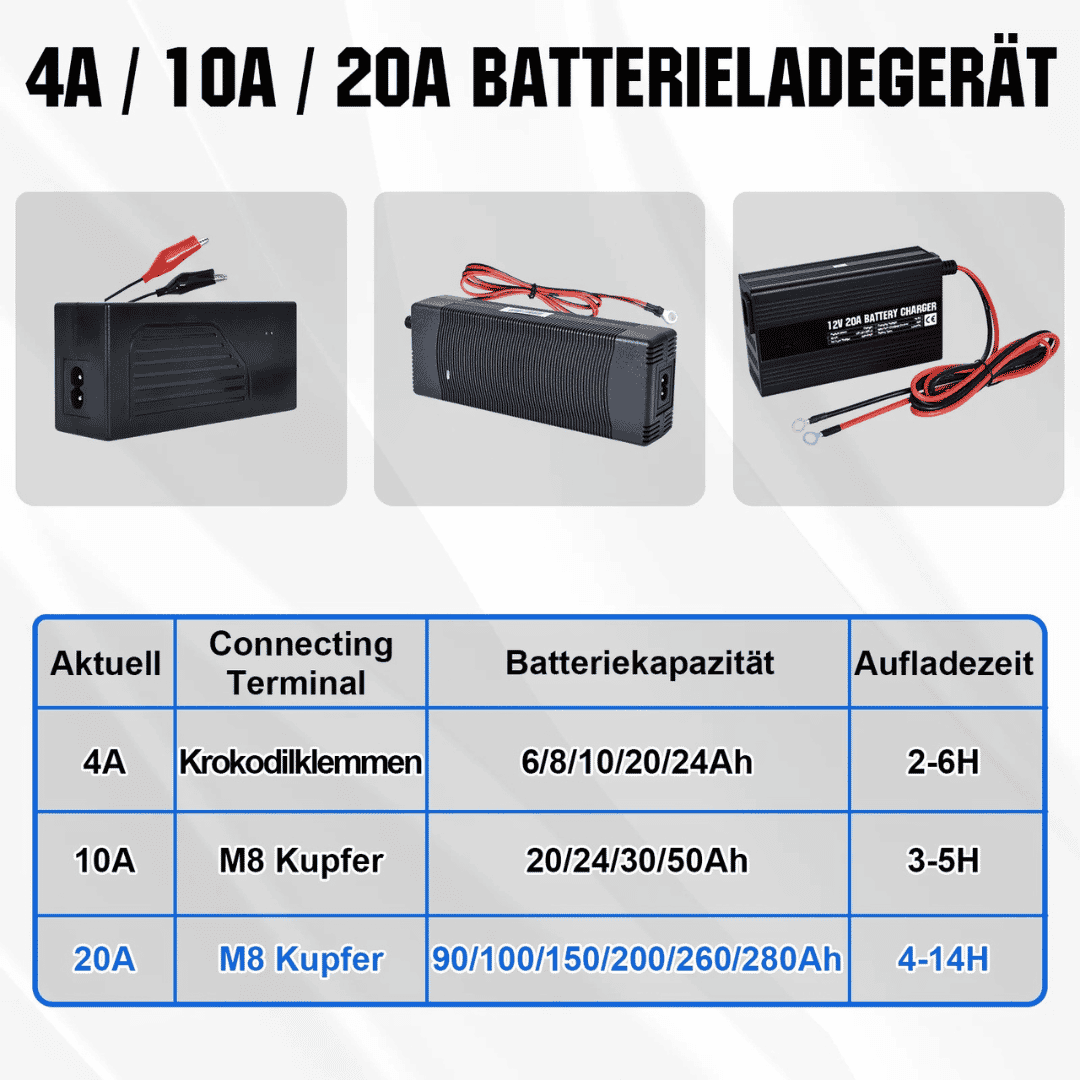

- User-friendly connections: Equipped with crocodile clips for the 4A model and M8 copper terminals for the 10A and 20A versions, it offers a safe and easy connection. Conclusion: With the Greenboatsolutions 4A / 10A / 20A battery charger, you get a powerful, flexible charger that provides the safety and efficiency you need when charging your batteries.

- 4A: Ideal for 6/8/10/20/24Ah batteries with a charging time of 2-6 hours.

- 10A: Perfect for 20/24/30/50Ah batteries, charging in 3-5 hours.

- 20A: For larger batteries from 90 to 280Ah, charging time is 4-14 hours.

The lithium battery charger provides a constant voltage of 14.6V and a peak current of 20A.

It can charge a 12V 100 Ah lithium battery to 50% of its capacity in just 2.5 hours, which is double the charging speed compared to typical 10A chargers.

We are confident that this lithium battery charger will give you the confidence you need. 🔋

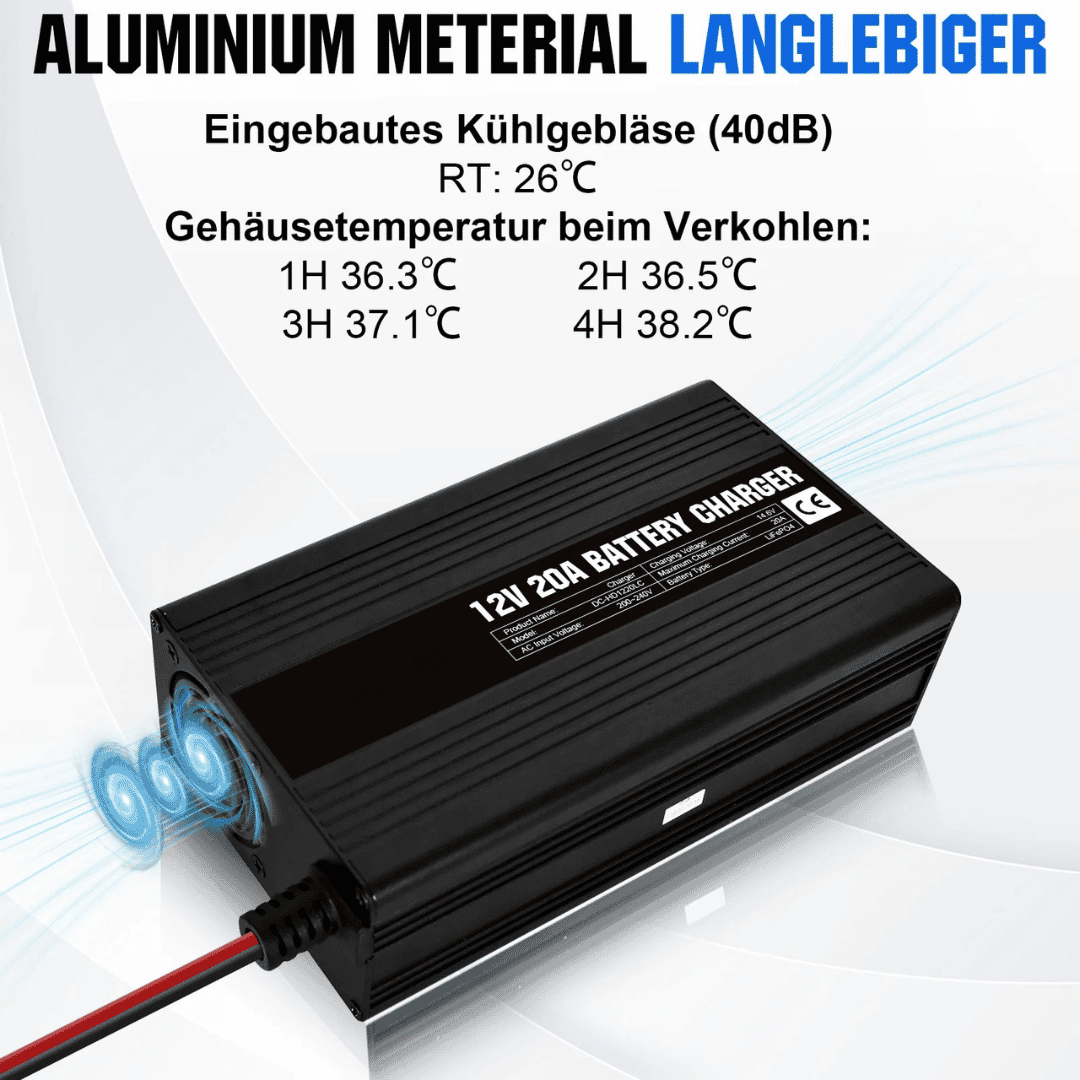

This lithium battery charger features an intelligent cooling function. It is equipped with a built-in cooling fan that ensures the heat generated during operation is efficiently dissipated.

Additionally, the device offers two indicator lights that display three different operating modes, allowing users to monitor the charging progress at any time. 🔋💨

With compact dimensions of 7.3 inches in length, 2.7 inches in width, and 1.6 inches in height, it is lightweight and handy – the weight is only 0.84 lbs (approx. 0.38 kg).

Technical details: - Battery connection cable: With a length of 1.2 meters and a cross-section of 12AWG, it ensures efficient energy transfer.

AC power cable: The 1.5 meter long cable with 18AWG allows for easy and flexible power supply.

Advantages:

- Compact size: Ideal for mobile use, can be easily stored anywhere.

- Efficient performance: High-quality construction for safe and fast charging.

- User-friendliness: Easy assembly and handling for all users.
