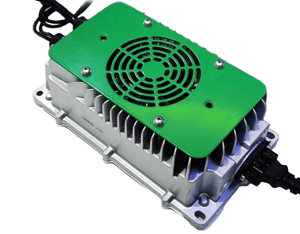

ACES charger 48V/15A 800W
charge power: 800 W
Status:
upon request
Shipping:
3-5 business days (available immediately)
399,00 €
incl. 19% VAT
, excl.
Charger from ACES Energy, which is suitable for LiFePO4 batteries. It can charge batteries with a nominal voltage of 48 volts with a maximum charging power of 800 W. The maximum charging voltage is 57.6V.
The chargers are available in 6 power classes of 600, 800, 1,350, 2,000, 3,300, 5,000 watts for lithium or lead-acid
Properties ACES charger 48V/15A 800W
Voltage
48 V
Nominal Voltage
57.6 V
charge power
800 W
charge current
15 A
For battery type
Lithium
display
yes
-
The chargers are available in 6 power classes of 600, 800, 1,350, 2,000, 3,300 and 5,000W for lithium.
-
The sealed battery chargers from ACES are based on the latest technologies, which result in a very compact size and low weight.
-
High efficiency of up to 94%, thanks to high-frequency LLC conversion technology.
-
All chargers have power factor correction (PFC) which provides a clean sinusoidal AC mains current and the lowest possible power consumption from the mains.
-
Meanwhile, more than 100,000 chargers are in use - this speaks for enormous quality and reliability.
Technology of the ACES charger 48V/15A 800W
-
57.6V charging voltage, suitable for most LiFePO4 batteries. Please make sure to use the correct charging voltage for each battery model.
-
IP67 sealed for use in harsh environments and high humidity
-
Protection functions: over-temperature, reverse polarity, no-load, short circuit, auto-stop, charging below 0°C (lithium)
-
Locking protection to prevent driving away while charging (not available in the 700W model)
-
CE certification
-
Temperature range: -20 - 45°C
-
Input voltage: 170-264V AC; 45-65Hz
Due to the current cookie settings, the Youtube video cannot be displayed.
Waterproof IP67 charger
-
IP67 sealed for use in harsh environments and high humidity
-
The electronics of the charger are completely sealed, but the fan is not protected.
-
These chargers can be used on a boat or vehicle on the water, but should be placed in a protected location for longevity.
ABC900F Series Battery Charger User manual V1.3 (1)
