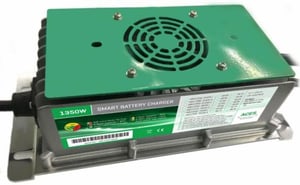

ACES charger 48V/25A 1350W

charge power: 1.350 W

Status:

available

Shipping:

3-5 business days (available immediately)

€449.00
incl. 19% VAT , excl.

Charger from ACES Energy, suitable for LiFePO4 batteries. It can charge batteries with a nominal voltage of 48 volts with a maximum charging power of 1350 W. The maximum charging voltage is 57.6V.

The chargers are available in 6 power classes of 300, 700, 1,350, 2,000, 3,300, 5,000 watts for lithium or lead-acid

Properties ACES charger 48V/25A 1350W

Voltage

48 V

Nominal Voltage

57.6 V

charge power

1350 W

charge current

25 A

For battery type

Lithium

display

yes

Shipping weight

4 kg

Dimensions (LxWxH)

40x20x17 cm

The chargers are available in 6 power classes of 300, 700, 1,350, 2,000, 3,300 and 5,000W for lithium.
The sealed battery chargers from ACES are based on the latest technologies, which result in a very compact size and low weight.
High efficiency of up to 94%, thanks to high-frequency LLC conversion technology.
All chargers have power factor correction (PFC) which provides a clean sinusoidal AC mains current and the lowest possible power consumption from the mains.
Meanwhile, more than 100,000 chargers are in use - this speaks for enormous quality and reliability.

Technology of the ACES charger 48V/25A 1350W

57.6V charging voltage, suitable for most LiFePO4 batteries. Please make sure to use the correct charging voltage for each battery model.
IP67 sealed for use in harsh environments and high humidity
Protection functions: over-temperature, reverse polarity, no-load, short circuit, auto-stop, charging below 0°C (lithium)
Locking protection to prevent driving away while charging (not available in the 700W model)
CE certification
Temperature range: -20 - 45°C
Input voltage: 170-264V AC; 45-65Hz

Charger compared with 48V 20A


	ACES charger 48V/25A 1350W	48V 18A charger 900W	CS-Electronic 48V/20A charger 1150 W	CS-Electronic 48V/20A charger waterproof	48V 25A LiFePO4 battery charger
Price	€449.00	€199.00	€300.00	€459.00	€349.00
Availability	available	available	not available	not available	available
Shipping	3-5 business days	3-4 days	2-3 business days	2-3 business days	3-4 days
charge current	25 A	18 A	20 A	20 A	25 A
charge power	1350 W	900 W	1150 W	1150 W	1350 W
Voltage	48 V	48 V	48 V	48 V	48 V
Nominal Voltage	57.6 V	58.4 V	58.4 V	58.4 V	51.2 V
display	yes	LED status	LED status	LED status	-

Due to the current cookie settings, the Youtube video cannot be displayed.

Waterproof IP67 charger

IP67 sealed for use in harsh environments and high humidity
The electronics of the charger are completely sealed, but the fan is not protected.
These chargers can be used on a boat or vehicle on the water, but should be placed in a protected location for longevity.

ACES charger 48V/25A 1350W Manual

ABC1350 Series Battery Charger User manual V1.5 (1)
