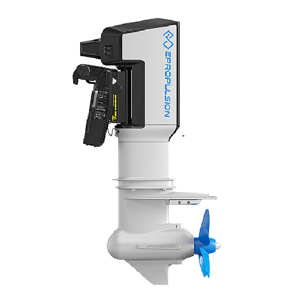

ePropulsion X12 Outboard Motor - New Release 2024!
Input power: 12 kW
Status:
available
Shipping:
2-3 months (from Q3 2024)
10.999,00 €
incl. 19% VAT
, incl.
ePropulsion X12 with 12 kW power, suitable for light gliders up to 600 kg or heavy displacement boats up to 6,000 kg. The electric propulsion with remote control and short or long shaft from ePropulsion is comparable to a 24 PS gasoline outboard motor.
The new model of the X series also has a direct drive and is damn quiet. In addition, the motors have a whole range of improvements and features such as GPS or electric steering.
shafttype
Product configurator
outboard
1 x ePropulsion X12
available
12 kW
€10,999.00
Selected
Motor
1 x ePropulsion G102-100
available
10.24 kWh
€5,999.00
Selected
1 x ePropulsion G102-230
available
23,55 kWh
€12,999.00
Battery
1 x ePropulsion I-Series Charger
available
3.300 W
€680.00
Selected
Accessories
1 x ePropulsion Smart Display
available
€500.00
Selected
1 x ePropulsion Smart Remote Control
available
€400.00
Selected
1 x ePropulsion G-Series Power Output Set 10m
available
€800.00
Selected
ePropulsion DC-DC converter 96V
available
€445.00
Optional
1 x ePropulsion power distribution block 250A
available
incl.
Selected
1 x ePropulsion ESSA communication cable 1 m
available
€28.00
Selected
1 x ePropulsion COM extension cable 5 m
available
€55.00
Selected
1 x ePropulsion COM extension cable 5 m
available
€90.00
1 x Battery CAN cable set 5m
available
€88.00
Selected
1 x ePropulsion ESSA 3-way T-connector
available
€28.00
Selected
ePropulsion ESSA 5-way T-connector test
available
€55.00
Optional
ePropulsion BUS remote switch "ON/OFF" incl. terminator
available
€138.00
Optional
1 x ePropulsion digital steering wheel
available
€400.00
Selected
1 x ePropulsion antenna set
available
€180.00
Selected
Charger
1 x ePropulsion X-Propeller 13 x 16 R
available
plastic
€160.00
Selected
1 x ePropulsion X-Propeller 15 x 10 R
available
plastic
€160.00
1 x ePropulsion X-Propeller 13 x 16 L
available
plastic
€160.00
1 x ePropulsion X-Propeller 15x10 L
available
plastic
€160.00
ePropulsion solar charge controller 2 kW 96V
available
€530.00
Optional
Summary
1 x ePropulsion X12
€10,999.00
1 x ePropulsion G102-100
€5,999.00
1 x ePropulsion I-Series Charger
€680.00
1 x ePropulsion Smart Display
€500.00
1 x ePropulsion Smart Remote Control
€400.00
1 x ePropulsion G-Series Power Output Set 10m
€800.00
1 x ePropulsion power distribution block 250A
incl.
1 x ePropulsion G-Series Connection Cable 0.5m
€240.00
1 x ePropulsion ESSA communication cable 1 m
€28.00
1 x ePropulsion COM extension cable 5 m
€55.00
1 x Battery CAN cable set 5m
€88.00
1 x ePropulsion ESSA 3-way T-connector
€28.00
1 x ePropulsion X-Propeller 13 x 16 R
€160.00
1 x ePropulsion digital steering wheel
€400.00
1 x ePropulsion antenna set
€180.00
Total price
€20,557.00
Properties ePropulsion X12
Input power
12 kW
comparable thrust
24 PS
Voltage
96 V
noise
73 dB
Noise level
audible noises
rotations per minute
2000 rpm
weight
48 kg
display
On-board computer with color display
kill switch
Yes
shafttype
short/normal shaft
shaft length
38.1 cm
control
remote steering
Speed control
infinitely variable
saltwater resistant
yes
cooling
water
tilting mechanism
Powertilt
trimming mechanism
Powertrimm
EPropulsion X12 - Safety on board
-
Designed for more than 5,000 hours of driving!
-
Housing and connector are waterproof according to IP 67.
-
Integrated GPS provides real-time accurate information on speed and battery range on an LCD display and optionally in the app.
-
Battery alarm: An acoustic warning signal informs you about a low battery status.
-
Emergency stop magnet chip - the electric motor stops as soon as the chip is removed from the remote control.
-
An integrated protection mechanism stops the motor or reduces speed if the ePropulsion X12 encounters resistance under water.
-
The ePropulsion G-Series batteries are ideal for all ePropulsion X-outboard and I-inboard motors. Third-party batteries should not be used.
-
96V high voltage - special caution is required! The system must be installed by a certified high-voltage technician and they must instruct you as the boat owner. Please feel free to contact us, we can take care of this for you.
EPropulsion X12 in test
Due to the current cookie settings, the Youtube video cannot be displayed.
Comparison of outboard motors from 10 kW
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ePropulsion X12 | MPower 11 | Torqeedo Cruise 12.0 R | Mercury Avator 110e | Mercury Avator 75e Remote | Aquamot Trend 11.0 | E-Tech 10 AB | Mitek 15 | Mitek 20 | Elco EP-30 | Rim Drive 11 R | Rim Drive 11 S | |
| Price | 10.999,00 € | 7.999,00 € | 10.549,00 € | 14.269,00 € | 11.699,00 € | 7.789,00 € | 10.699,00 € | 9.499,00 € | 11.999,00 € | 9.249,00 € | 12.799,00 € | 14.899,00 € |
| Availability |
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
| Shipping | 2-3 months | 2-3 weeks | 3-4 business days | 1-2 weeks | 1-2 weeks | 3-4 weeks | 3-4 weeks | 2-3 weeks | 2-3 weeks | 6 weeks | 3-4 weeks | 3-4 weeks |
| Input power | 12 kW | 11 kW | 12 kW | 12.8 kW | 8.6 kW | 11 kW | 10 kW | 10.5 kW | 13 kW | 12.5 kW | 11 kW | 11 kW |
| comparable thrust | 24 PS | 20 PS | 25 PS | 25 PS | 15 PS | 20 PS | 20 PS | 15 PS | 20 PS | 30 PS | 20 PS | 20 PS |
| Voltage | 96 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 96 V | 48 V | 48 V |
| noise | 73 dB | 70 dB | - dB | - dB | - dB | - dB | - dB | - dB | - dB | - dB | - dB | - dB |
| weight | 48 kg | 35 kg | 61.3 kg | 56 kg | 55 kg | 52.2 kg | - kg | 49 kg | 56 kg | 41 kg | 35 kg | 50 kg |
Operation of the ePropulsion X12
-
Comparable to the performance of a 8aea2ae0-76a5-4620-bea8-84dace82bf20___2c291c23-18c6-428f-907d-3c360117d62e%% gasoline engine.
-
The electric control is particularly easy to use.
-
Electric trim (-4° to 61° immersion angle) and tilt (raising the motor) enable use in all waters (shallow water, launching, etc.)
-
Stepless speed control leads to an efficient consumption.
-
Comprehensive accessories and state-of-the-art charging technology (including solar!) available.
-
Thanks to vibration damping and frequency resonance isolation, the ePropulsion X12 operates at a noise level of less than 73 dB.
-
Assembly is easy and uncomplicated at the rear. However, tools and lifting equipment are required.
EPropulsion X12 - Technology in Detail
-
Optimized propeller efficiency thanks to intensive development and research in the field of fluid dynamics.
-
Available in 2 different shaft lengths (short shaft with 38.1 cm and long shaft with 50.8 cm)
-
The ePropulsion X12 is equipped with a closed liquid cooling system. No water absorption is required in the process and the cooling works excellently even under harsh conditions.
-
Very high drive efficiency of 88.2% (without the propeller).
-
Extremely modern and sporty design with blue color accents.
-
The engine is almost maintenance-free. Only the anodes and lubrication points need to be checked annually.
-
Significantly lighter than a combustion engine: yet a whopping 48 kg
-
Dimensions of the motor: 560 x 266 x 978 mm
Electric trim and tilt, electric and digital control
Range of the ePropulsion X12 outboard
Travel time and range depend on the battery. In an example with a 6 m aluminum boat (total weight 1,000 kg) and a 40 kWh battery, we have the following measurements:
→ At 12 kW (full load), the ePropulsion X12 runs for just under an hour at a speed of 30 km/h and achieves a range of 25 km.
→ At 6 kW (1/2 power), the driving pleasure lasts for a 2-hour trip on the water at a cruising speed of 15 km/h and a range of 30 km.
→ At 3 kW power, the battery lasts for 5 hours of driving at 12 km/h. In total, up to 60 km are possible with one battery charge. Those who plan longer and more leisurely tours on the water can go much further with less power.
Contents of the ePropulsion X12 delivery
• We recommend using our configurator (put together a package) for a detailed overview.
• The price is for the motor only. You will also need batteries (at least 4x G102-100), charger, controller, display, and propeller.
There is also optional accessories (various cables, DC-DC converter, GPS & antenna) that are a good addition depending on the boat.
Maintain course, maintain position, 360° movement and more!
Information about the battery of the ePropulsion X12
The G102-100 battery is fully compatible with your 96V ePropulsion X12 outboard motor. The batteries are safe and reliable, and more efficient due to the higher voltage. The LiFePO4 batteries have a high energy density with an extremely long lifespan.
The integrated ePropulsion Connectivity Service keeps you up to date on the status of your boat in real time and offers advanced monitoring, reporting, and trip tracking features.
The manufacturer ePropulsion
ePropulsion is an innovative manufacturer of electric drives with the aim of further advancing e-mobility in water sports. The idea was conceived in 2012 by four young engineers in Hong Kong.
With the goal of making environmentally friendly, clean and quiet motors competitive, they have since designed numerous models. These include the Spirit 1.0 PLUS, Navy 6.0 EVO or the I-Series inboard and X-Series outboard. The models are characterized by a great price-performance ratio - of course also thanks to production in the Far East.
More information about the X-series drives
ePropulsion Technology Limited produces electric boat drives without gears and with a high-quality brushless DC motor. The motors are therefore extremely quiet and low-maintenance. ePropulsion offers boat motors with a wide range of functions such as GPS. Of course, suitable lithium batteries and chargers are also available in the range.
The motors in elegant design in combination with the powerful batteries ensure long-lasting performance. They are easy to handle, safe and technically up to date. They are therefore ideal for getting started with e-mobility on the water.
