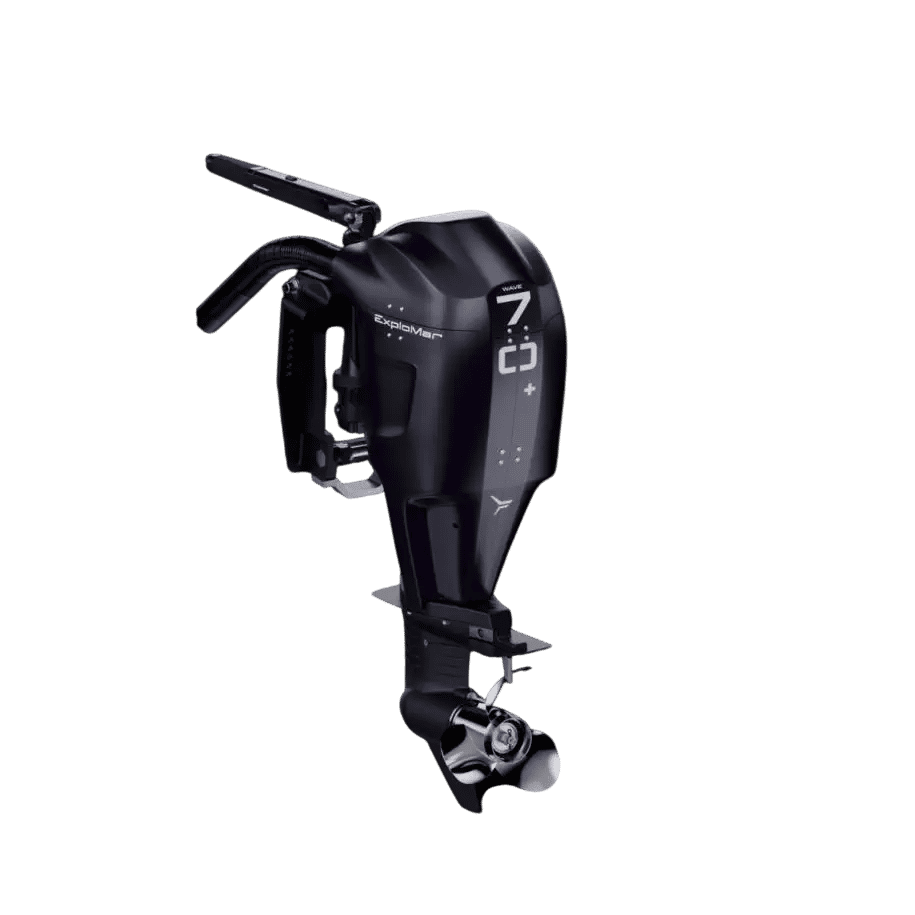

ExploMar Wave 70
Input power: 40 kW
Status:
available
Shipping:
2-3 months
€22,999.00
incl. 19% VAT
, excl.
ExploMar Wave 70 with 40 kW power, suitable for light gliders up to 2,000 kg or heavy displacement boats up to 20,000 kg. The electric drive with remote control and long shaft from Explomar is comparable to a 70 PS petrol outboard motor.
The new Wave model has a gearbox and produces audible noise, but has low water resistance. In addition, the motors feature a whole range of improvements and features such as GPS or electric steering.
Product configurator
outboard
1 x ExploMar Wave 70
available
40 kW
€22,999.00
Selected
Motor
1 x ExploMar NMC 60 kWh
available
60.00 kWh
€22,999.00
Selected
Battery
1 x ExploMar charger 7 kW
available
7.000 W
incl.
Selected
1 x ExploMar Charger 40 kW
available
4.000 W
€15,319.00
1 x ExploMar Charger 120 kW
available
120 W
€35,749.00
Summary
1 x ExploMar Wave 70
€22,999.00
1 x ExploMar NMC 60 kWh
€22,999.00
1 x ExploMar charger 7 kW
incl.
Total price
€45,998.00
Properties ExploMar Wave 70
Input power
40 kW
peak performance
80 kW
comparable thrust
70 PS
comparable speed
70 horsepower
Voltage
350 V
integrated battery
No
Noise level
audible noises
rotations per minute
3500 rpm
torque
360 Nm
weight
80 kg
Dimensions (LxWxH)
37x65x128 cm
display
yes
shafttype
long shank
control
remote gas
Speed control
stepless
saltwater resistant
yes
cooling
water
propeller
aluminum
tilting mechanism
Powertilt
trimming mechanism
Powertrimm
Warranty
2 Years
Electric outboard motor Wave 70+
-
The motor uses X-Pin flat-wire technology, making it lighter and at the same time powerful.
-
Housing and connector are waterproof according to IP 67.
-
Integrated GPS provides real-time precise information on speed and battery range on an LCD display and optionally in the app.
-
Battery alarm: An audible warning signal informs you about a low battery status.
-
High-performance gearbox for improved performance. The motor therefore still produces audible noise.
ExploMar Wave 70 in the test
Due to the current cookie settings, the Youtube video cannot be displayed.
Outboard motors from 40 kW in comparison
|
|
|
|
|
|
|
|
|
|
ExploMar Wave 70 | ePropulsion X40 | Molabo 50 kW system | Torqeedo Deep Blue 50 R | Mitek 60 | Mitek 80 | Aquawatt Green Flash R | |
| Price | €22,999.00 | €16,999.00 | €70,399.00 | On request | €42,599.00 | €47,499.00 | €21,799.00 |
| Availability |
available
|
available
|
available
|
upon request
|
available
|
available
|
available
|
| Shipping | 2-3 months | 2-3 months | 3-4 weeks | 3-4 weeks | 3-4 weeks | 3-4 weeks | 2-3 months |
| Input power | 40 kW | 40 kW | 50 kW | 55.1 kW | 45 kW | 60 kW | 42 kW |
| comparable thrust | 70 PS | 60 PS | 70 PS | 80 PS | 60 PS | 80 PS | - PS |
| Voltage | 350 V | 96 V | 48 V | 400 V | 400 V | 400 V | 144 V |
| weight | 80 kg | 99 kg | 120 kg | 139 kg | 146 kg | 152 kg | 98 kg |
Operation of the ExploMar Wave 70
-
Comparable to the performance of a 70 PS gasoline engine.
-
Stepless speed control leads to efficient consumption.
-
The motor is almost maintenance-free. Only the anodes and lubrication points need to be checked annually.
-
The engine features a closed liquid cooling system that maintains optimal operating temperatures and prevents damage from corrosion or blockages.

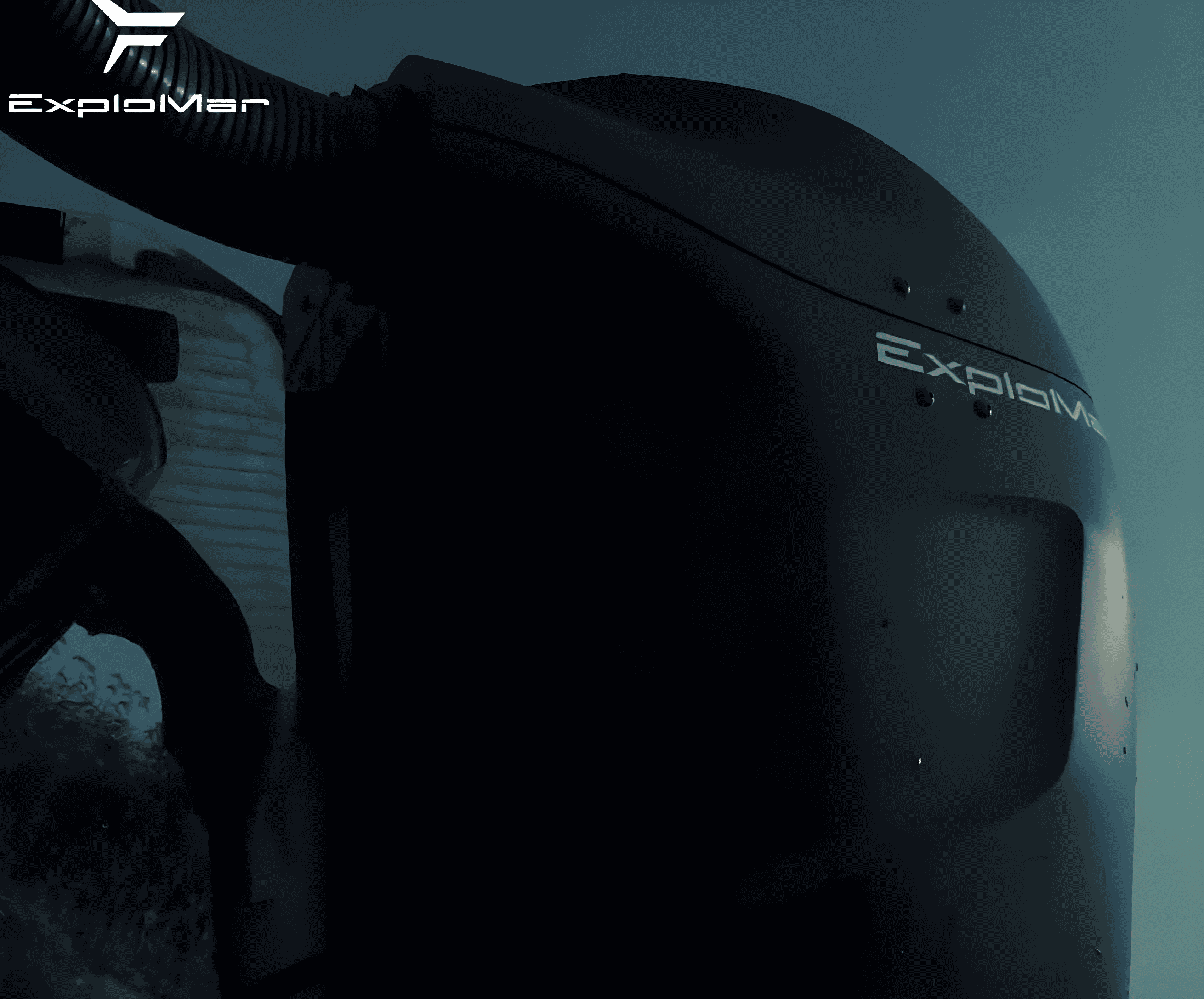

ExploMar Wave 70+ technology in detail
-
Optimized propeller efficiency thanks to intensive development and research in the field of fluid dynamics.
-
The motor uses intelligent thermal management technology that automatically monitors and regulates the temperature to ensure optimal performance and safety.
-
The ExploMar Wave 70 is equipped with a closed liquid cooling system. No water intake is required during operation and the cooling works excellently even under harsh conditions.
-
Very high drive efficiency of 88.2% (without the propeller).
-
Significantly lighter than a combustion engine: still a solid 80 kg
-
Dimensions of the motor: 370 x 655 x 1285 mm
Range of ExploMar Wave 70 outboard
Travel time and range of the WAVE 70+ depend on the battery used and the boat load. In an example with a 6 m aluminum boat (total weight approx. 1,000 kg) and a 60 kWh battery (SI‑60), the following values result:
Full power 40 kW: The WAVE 70+ reaches a speed of approx. 36 km/h (22 mph) and allows for about 1 hour of travel time, which corresponds to a range of around 36 km.
Half power 20 kW: At a moderate speed of 15 km/h, 2 hours of fun are possible, with a range of approx. 30 km.
Light cruising 10 kW: At a relaxed speed of 12–13 km/h, the motor can be operated for up to 4 hours, resulting in a total range of around 50 km.
If you plan longer, leisurely tours, you can travel significantly further with lower power.
Additionally, the WAVE 70+ saves CO₂ emissions and fuel consumption per hour of operation, as it operates fully electrically.
Scope of delivery of ExploMar Wave 70
The WAVE 70+ electric outboard motor is delivered as a complete propulsion package. The scope of delivery includes the motor itself, the control system with control box, throttle/shift lever, as well as all necessary mounting and wiring materials.
An extensive operating and installation manual is also included.
Batteries, charger, or displays are available separately, allowing the system to be flexibly adapted to different boat types and requirements.
Information about the battery of ExploMar Wave 70
ExploMar offers high-performance lithium battery systems specifically for the WAVE 70+ electric outboard motor. The SI‑60 battery pack delivers 60 kWh of energy, is waterproof (IP67), equipped with integrated cooling and heating management, and ensures stable, reliable performance all day on the water.
The modular design allows easy expansion up to 120 kWh, so the batteries can be flexibly adapted to different boat types and range requirements.
The manufacturer ExploMar
ExploMar is a global manufacturer of high-performance electric outboard propulsion systems for boats. The company was founded in 2021 and focuses on the development of medium- to high-performance, emission-free propulsion solutions and integrated energy systems for maritime use.
With its WAVE series – including the WAVE 70+ electric outboard – ExploMar offers motors, battery and control systems, as well as charging infrastructure designed for quiet operation, high efficiency, and low maintenance. The products are used worldwide on leisure and work boats and are part of a growing ecosystem for sustainable electric mobility on the water.
More information about the ExploMar Wave 70
ExploMar develops powerful electric outboard motors and complete propulsion systems for boats with up to 600 HP of power.
The WAVE 70+ is a 100% electric outboard motor that offers instant torque, quiet operation, and emission-free performance. Its sleek design and advanced technology make the WAVE 70+ ideal for recreational boats and for getting started with e-mobility on the water.
In combination with robust battery systems, controls, and chargers, it ensures reliable performance, easy handling, and low maintenance.
