ePropulsion Pod 6.0 EVO
Input power: 6 kW
Status:
available
Shipping:
2-3 business days (available from mid-January)
3.249,00 €
incl. 19% VAT
, incl.
Pod motor with 6 kW power, suitable for sailboats up to approximately 4,000 kg displacement. The motor with remote control from ePropulsion is compatible with all 48 V ePropulsion batteries. Comparable to a 10 hp gasoline engine. The remote control has an onboard computer with display and GPS. The special feature of the EVO is recuperation.
Product configurator
Pod motor
1 x ePropulsion Pod 6.0 EVO
available
6 kW
€3,249.00
Selected
Motor
1 x Ultimatron 48 V 150 Ah Bluetooth
available
7.68 kWh
€1,999.00
Selected
1 x Lithimo battery case 6 kWh 48V
available
6 kWh
€3,399.00
1 x ePropulsion E163
available
8,35 kWh
€4,499.00
2 x ePropulsion E60
available
3,072 kWh
€4,198.00
1 x 48V 200Ah LiFePO4
orderable
10,24 kWh
€3,199.00
Battery
1 x ACES charger 48V/25A 1350W
available
1.350 W
€449.00
Selected
1 x ACES charger 48V/15A 800W
upon request
800 W
€399.00
1 x ACES charger 48V/35A 2000W
available
2.000 W
€599.00
1 x ACES charger 48V/50A 3300W
available
3.300 W
€999.00
Accessories
1 x ePropulsion EVO remote control
available
€300.00
Selected
1 x ePropulsion EVO single lever control
available
€495.00
1 x ePropulsion EVO dual remote control
available
€550.00
ePropulsion COM cable 5 m
available
€88.00
Optional
Battery Monitor BMV-700
available
€154.00
Optional
ECTIVE BM X Battery Monitor
available
€169.00
Optional
Charger
ePropulsion EVO safety wristband
available
€109.00
Optional
Folding propeller Pod 6.0 EVO
available
€999.00
Optional
Main switch 48V
available
€54.00
Optional
Summary
1 x ePropulsion Pod 6.0 EVO
€3,249.00
1 x ePropulsion EVO remote control
€300.00
1 x Ultimatron 48 V 150 Ah Bluetooth
€1,999.00
1 x ACES charger 48V/25A 1350W
€449.00
Total price
€5,997.00
Properties ePropulsion Pod 6.0 EVO
kill switch
Yes
Input power
6 kW
comparable thrust
9.9 PS
propulsion power
3.1 kW
thrust
225 lbs
Voltage
48 V
rotations per minute
1500 rpm
weight
31 kg
noise
55 dB
Noise level
almost silent
display
On-board computer with digital display
Recuperation
yes
Speed control
infinitely variable
saltwater resistant
yes
cooling
water
propeller
plastic
shafttype
without a shaft
Experience with the Pod 6.0 EVO
⭐⭐⭐⭐⭐ Price-performance ratio is right!
Janusz Kutkowski from CANNA Boats
The ePropulsion Pod 6.0 EVO is currently simply the pod motor with the most balanced price-performance ratio for motors and batteries. The installation and commissioning went smoothly, the motor is quiet and provides sufficient thrust.
We had bad experiences with other manufacturers and therefore switched. Ideally, our boat would have a more stylish and functional display. We have integrated a multifunctional touch display via shunt and made the pod rotatable.
Safety with the ePropulsion Pod Drive 6 EVO
-
The pod propulsion system is perfect for motorboats, sailboats, and daysailers.
-
Housing and connector are waterproof according to IP 67.
-
An integrated protection mechanism stops the motor or reduces speed if the Drive 6.0 EVO encounters resistance underwater.
-
Emergency stop magnet chip on the remote control - when removed from the throttle, the electric motor stops immediately.
-
Integrated LCD display provides precise information about the battery and runtime.
-
Battery alarm: An acoustic warning signal informs you about a low battery status
Comparison of 6 kW hub motors
|
|
|
|
|
|
|
|
|
|
|
|
ePropulsion Pod 6.0 EVO | Torqeedo Cruise 6.0 FP | Aquamot Trend 8.0FM | Mitek 5 | Mitek 7.5 | E-Tech 7 POD | Rim Drive Pod 8 | SeaDrive Pod 7.5 | Hy.G 6 kW Pod | |
| Price | 3.249,00 € | 4.599,00 € | 6.099,00 € | 9.299,00 € | 9.999,00 € | 8.299,00 € | 10.999,00 € | 8.439,00 € | 8.899,00 € |
| Availability |
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
| Shipping | 2-3 business days | 3-4 workdays | 3-4 weeks | 2-3 weeks | 2-3 weeks | 3-4 weeks | 3-4 weeks | 3-4 weeks | 3-4 weeks |
| Input power | 6 kW | 6 kW | 8 kW | 5 kW | 7.5 kW | 7.1 kW | 8 kW | 7.5 kW | 7 kW |
| comparable thrust | 9.9 PS | 9.9 PS | 15 PS | 6 PS | 10 PS | - PS | 15 PS | 15 PS | 20 PS |
| weight | 31 kg | 14.7 kg | 44.3 kg | - kg | - kg | - kg | 14 kg | 45 kg | 19 kg |
| rotations per minute | 1500 rpm | 1130 rpm | 1500 rpm | - rpm | - rpm | - rpm | 1300 rpm | 1700 rpm | 1200 rpm |
| Recuperation | yes | yes | no | no | no | optional | yes | optional | yes |
Pod motor for sailboats - Comfort in operation
-
The control is possible thanks to the comfortable remote control forward and backward. Communication takes place via an integrated 3.5 inch compact module.
-
Infinitely variable control of the speed using the wireless Bluetooth control. One push is enough to start the electrically powered motor.
-
The controller is not included in the delivery. You have the choice between a top-mounted gas lever including display and a laterally mountable variant with a separate display.
-
The installation should be carried out by a professional.
6.0 EVO Pod Motor - Technology
-
Very quiet - under 60dB! The electric motor is therefore significantly quieter than combustion engines.
-
Thanks to the high efficiency of the high-quality, brushless DC motor, the motor achieves an overall efficiency of 50%.
-
Maintenance-free for life. The drives are designed for continuous use underwater. Only the anodes need to be checked annually.
-
If necessary, a folding propeller can be used. Recuperation only works with the standard propeller and with the ePropulsion E-Series batteries.
Pod 6.0 EVO Podmotor - Battery Range

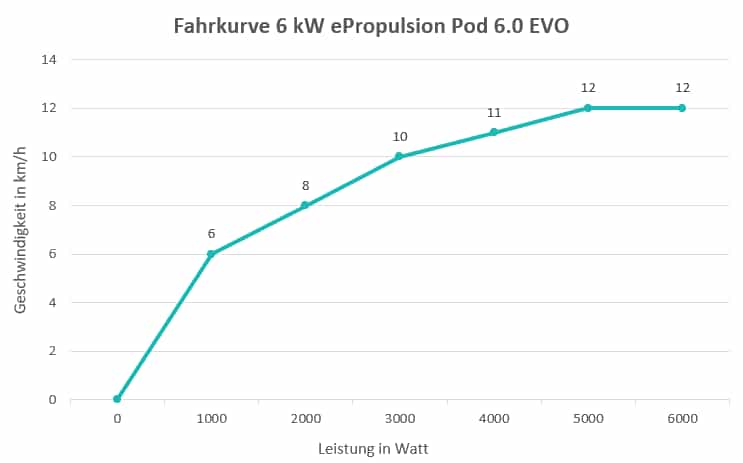

Travel time and range depend mainly on the boat (weight and length) and the battery. In combination with an E175 battery with a total of ~9 kWh, we achieved the following speeds and ranges in the test with a 30-foot sailboat:
Under full load with the ePorpulsion Pod 6.0 EVO, the batteries last about 1.5 hours in operation. In the test at 12.9 km/h, a range of 19.2 km can be achieved.
At half load of 3 kW, we were able to drive for a total of 3 hours. Speed of 10.5 km/h and a range of about 31 km.
Those who plan longer and more comfortable tours on the water can go much further with less power. At partial load (1,000 W), one battery charge lasts around 9 hours. With the E175, a range of ~70 km is realistic.
Battery of the ePropulsion Pod 6.0 EVO pod motor
Thanks to the uniform voltage of 48V, you can easily bring your desired battery on board. This allows batteries to be connected in parallel and combined. Please note our instructions regarding the batteries used and sufficient storage space.
The lithium-ion battery can also be quickly made roadworthy depending on the charger. The charger should be chosen depending on the desired battery size. We are happy to support you here in our free telephone consultation or with our digital advisor.
The manufacturer ePropulsion - electric pod drives
ePropulsion is an innovative manufacturer of electric drives with the aim of further advancing e-mobility in water sports. The idea was conceived in 2012 by four young engineers in Hong Kong. With the goal of making environmentally friendly, clean and quiet motors competitive, they have since designed numerous models, such as the Spirit 1.0 or the Navy 3.0. The motors have a top price-performance ratio.
EPropulsion pod motors - Miscellaneous
ePropulsion Technology Limited produces electric boat drives without gears and with a high-quality brushless DC motor. The motors are therefore extremely quiet and low-maintenance. ePropulsion offers boat motors with a wide range of functions such as GPS. Of course, suitable lithium-ion batteries and chargers are also available in the range.
The motors in elegant design in combination with the powerful batteries ensure long-lasting performance. They are easy to handle, safe and technically up to date. They are therefore ideal for getting started with e-mobility on the water.
Pod 6.0 Downloads
Pod 6.0 EVO drawing
Pod 6.0 EVO Flyer
Pod 6.0 EVO User Manual
Pod 6.0 EVO warning notices
