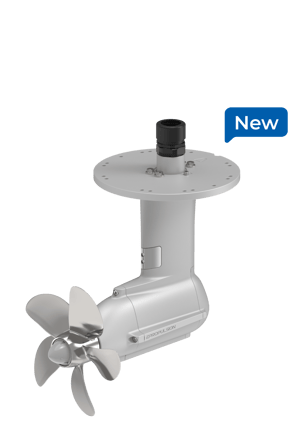

ePropulsion Pod 20 eSSA - New product 2025!
Input power: 20 kW
Status:
available
8.999,00 €
incl. 19% VAT
, incl.

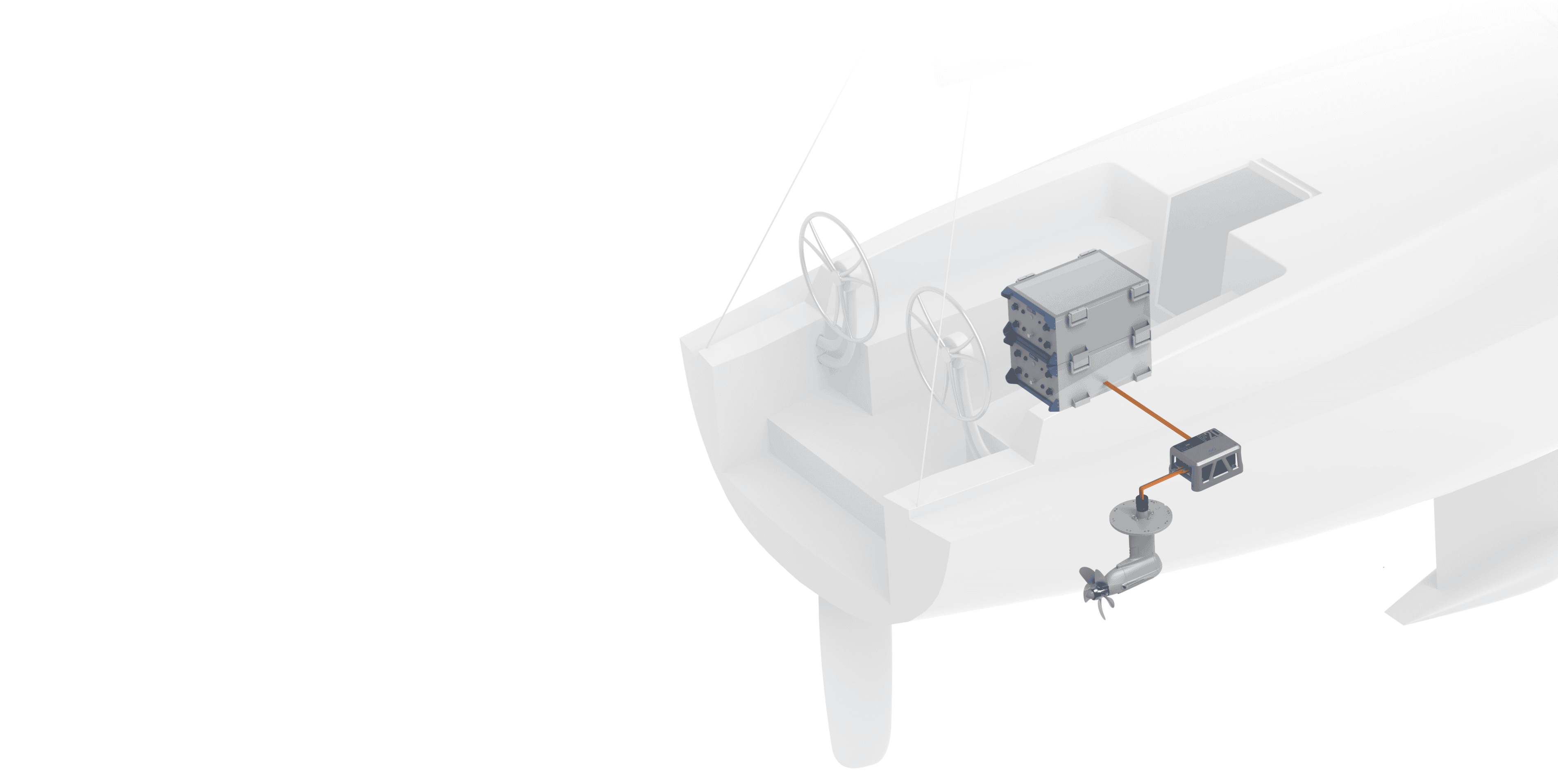

ePropulsion Pod 20 with 20 kW power, suitable for heavy sailing boats up to 10,000 kg. The electric drive with remote control from ePropulsion is comparable to a 40 PS gasoline saildrive. The new model of the Pod series also has a direct drive and is damn quiet. 96V high voltage.
Product configurator
Pod motor
1 x ePropulsion Pod 20
available
20 kW
€8,999.00
Selected
Motor
2 x ePropulsion G102-100
available
20.48 kWh
€11,998.00
Selected
1 x ePropulsion G102-230
available
23,55 kWh
€12,999.00
Battery
1 x ePropulsion I-Series Charger
available
3.300 W
€680.00
Selected
Accessories
1 x ePropulsion Smart Remote Control
available
€400.00
Selected
1 x ePropulsion Smart Display
available
€500.00
Selected
1 x ePropulsion G-Series Power Output Set 10m
available
€800.00
Selected
ePropulsion DC-DC converter 96V
available
€445.00
Optional
1 x ePropulsion power distribution block 250A
available
incl.
Selected
1 x ePropulsion G-Series Connection Cable 1.5m
available
€300.00
Selected
1 x ePropulsion G-Series Connection Cable 0.5m
available
€240.00
1 x ePropulsion G-Series Connection Cable 5m
available
€550.00
1 x ePropulsion ESSA communication cable 1 m
available
€28.00
Selected
1 x ePropulsion COM extension cable 5 m
available
€55.00
Selected
1 x ePropulsion COM extension cable 5 m
available
€90.00
1 x Battery CAN cable set 5m
available
€88.00
Selected
1 x ePropulsion ESSA 3-way T-connector
available
€28.00
Selected
ePropulsion ESSA 5-way T-connector test
available
€55.00
Optional
ePropulsion BUS remote switch "ON/OFF" incl. terminator
available
€138.00
Optional
Charger
1 x ePropulsion X-Propeller 15x10 L
available
plastic
€75.00
Selected
1 x ePropulsion Pod Propeller 11x9 R
available
plastic
€75.00
1 x Folding Propeller Pod 12.0
orderable
stainless steel
€1,499.00
ePropulsion solar charge controller 2 kW 96V
available
€530.00
Optional
Summary
1 x ePropulsion Pod 20
€8,999.00
1 x ePropulsion X-Propeller 15x10 L
€75.00
2 x ePropulsion G102-100
€11,998.00
1 x ePropulsion I-Series Charger
€680.00
1 x ePropulsion Smart Remote Control
€400.00
1 x ePropulsion Smart Display
€500.00
1 x ePropulsion G-Series Power Output Set 10m
€800.00
1 x ePropulsion power distribution block 250A
incl.
1 x ePropulsion G-Series Connection Cable 1.5m
€300.00
1 x ePropulsion ESSA communication cable 1 m
€28.00
1 x ePropulsion COM extension cable 5 m
€55.00
1 x Battery CAN cable set 5m
€88.00
1 x ePropulsion ESSA 3-way T-connector
€28.00
Total price
€23,951.00
Properties ePropulsion Pod 20
kill switch
Yes
Input power
20 kW
comparable thrust
40 PS
comparable speed
27 horsepower
Voltage
96 V
rotations per minute
2000 rpm
weight
35 kg
noise
73 dB
Noise level
audible sounds
display
On-board computer with color display
Recuperation
yes
Speed control
continuously
saltwater resistant
yes
cooling
water
propeller
aluminum
maximum boat weight
10000 kg
length
750 mm
Warranty
2 Years
width
300 mm
height
424 mm
EPropulsion Pod 20 - maximum safety on board
-
Designed for more than 5,000 hours of driving!
-
The housing and connector are waterproof according to IP 67.
-
Integrated GPS provides real-time precise information on speed and battery range on an LCD display and optionally in the app.
-
Battery Alarm: An acoustic warning signal informs you about a low battery status.
-
Emergency stop magnet chip - the e-motor stops as soon as the chip is removed from the remote control.
-
An integrated protection mechanism stops the motor or reduces the speed if the ePropulsion Pod 20 encounters resistance underwater.
-
The ePropulsion G-Series batteries are ideal for all ePropulsion pod motors. Third-party batteries should not be used.
-
96V High Voltage - special caution is required! The system must be installed by a certified high voltage technician, and they must instruct you as the boat owner. Feel free to contact us, we can take care of that for you.
Operation of ePropulsion Pod 20
-
Comparable to the performance of a 40 PS gasoline engine.
-
The electric control is particularly easy to handle.
-
Stepless control of speed leads to an efficient consumption.
-

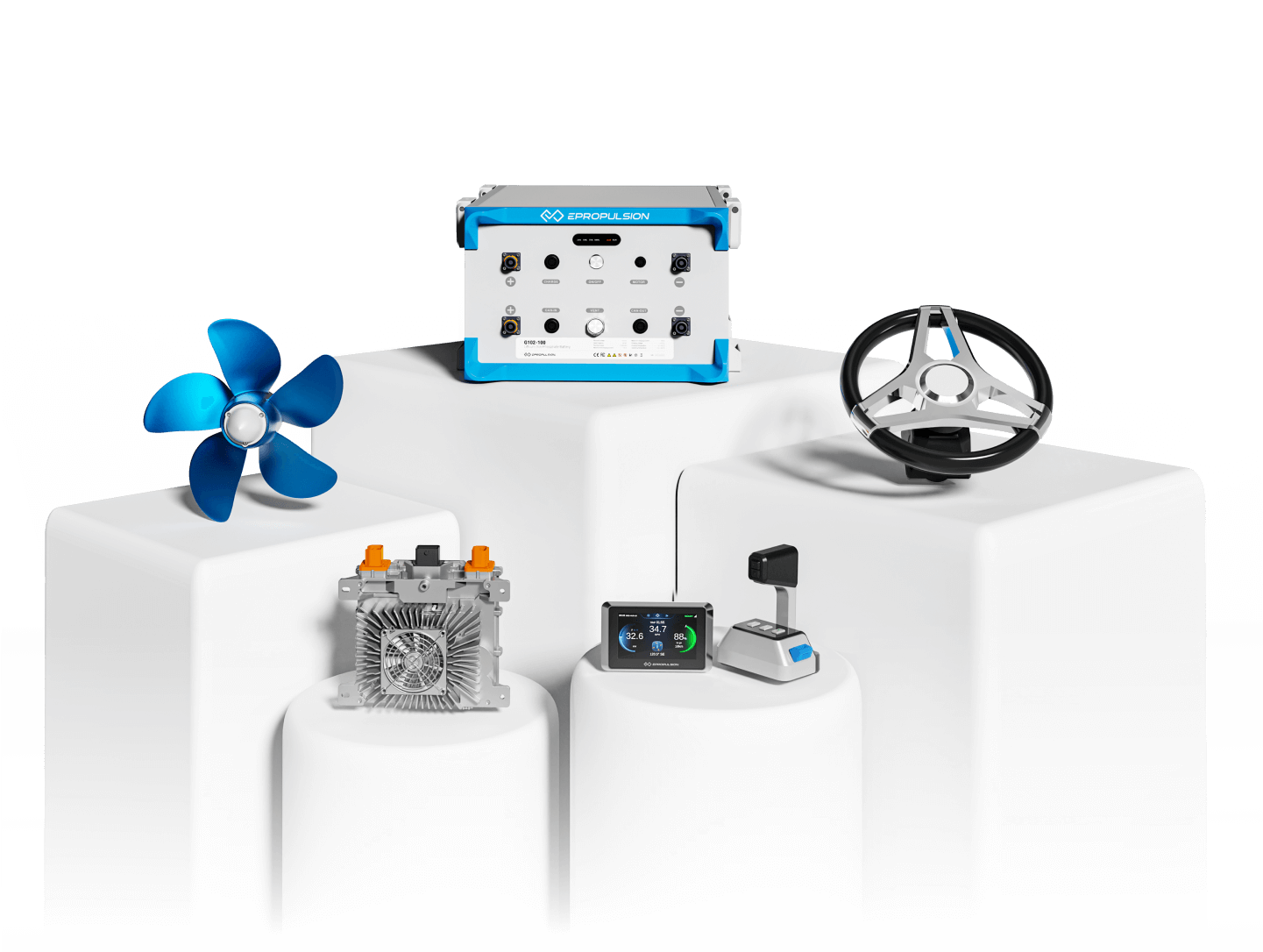

Extensive accessories and state-of-the-art charging technology (including solar!) available.
-
Thanks to vibration damping and frequency resonance isolation, the ePropulsion Pod 20 operates at a noise level of less than 73 dB.
-
It is recommended to have the assembly carried out by a certified and trained boat builder. Tools and lifting equipment are required.

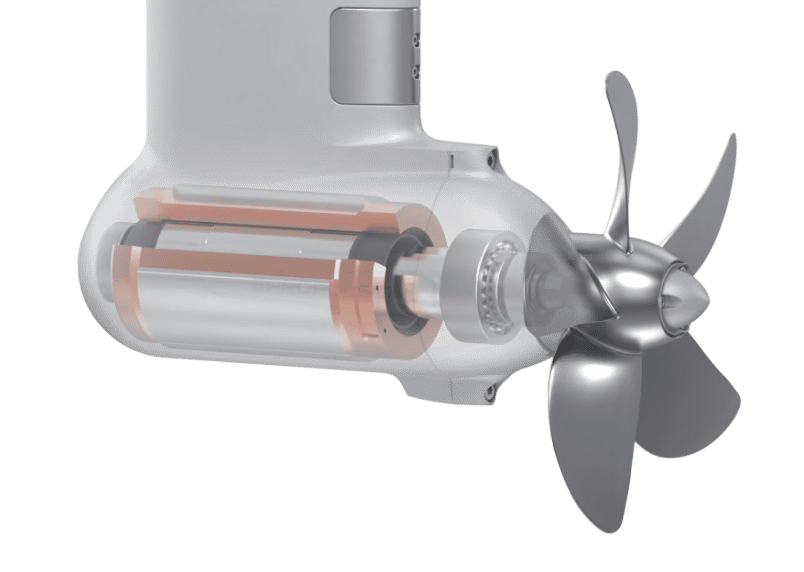

EPropulsion Pod 20 - Technology in Detail
-
Optimized propeller efficiency thanks to intensive development and research in the field of fluid dynamics.
-
The ePropulsion Pod 20 is equipped with a closed liquid cooling system. The process does not require water intake and the cooling works excellently even in harsh conditions.
-
Very high drive efficiency of 88.2% (without the propeller).
-
The engine is almost maintenance-free. Only the anodes and lubrication points need to be checked annually.
-
Significantly lighter than a sail drive with gearbox: 10000 kg
-
Dimensions of the motor: 424 x 300 x 750 mm
Range of ePropulsion Pod 20 Pod motor
Travel time and range depend on the battery. In an example with an 8.5 m sailboat (total weight 3,000 kg) and a 10 kWh battery, we have the following measurements:
At 12 kW (full load), the ePropulsion Pod 20 runs for just under an hour at a speed of 12 km/h and achieves a range of 10 km.
At 6 kW (1/2 power), the enjoyment lasts for a 1.5-hour trip on the water at a cruising speed of 10 km/h and a range of 15 km.
At 3 kW power, the battery lasts for 3 hours of travel at 8 km/h. In total, up to 24 km are possible on a single charge. Those planning longer and more leisurely trips on the water can go significantly further with less power. Of course, more batteries can also be used.
Contents of ePropulsion Pod 20
• It is best to use our configurator (assemble package) for a detailed overview.
• The price is for the motor. Additionally, you will need batteries (at least 1x G102-100), charger, control unit, display, and propeller.
There is also optional accessories (various cables, DC-DC converters, GPS & antenna) that are a good addition depending on the boat.

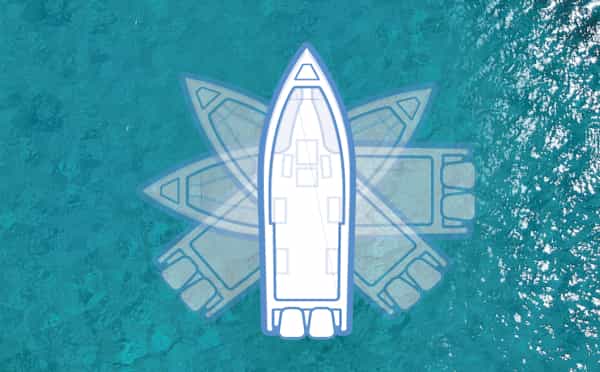

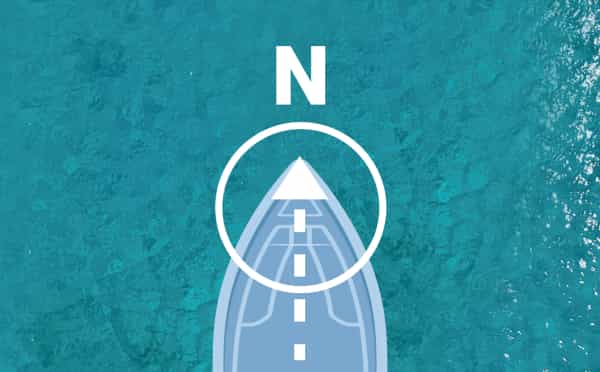

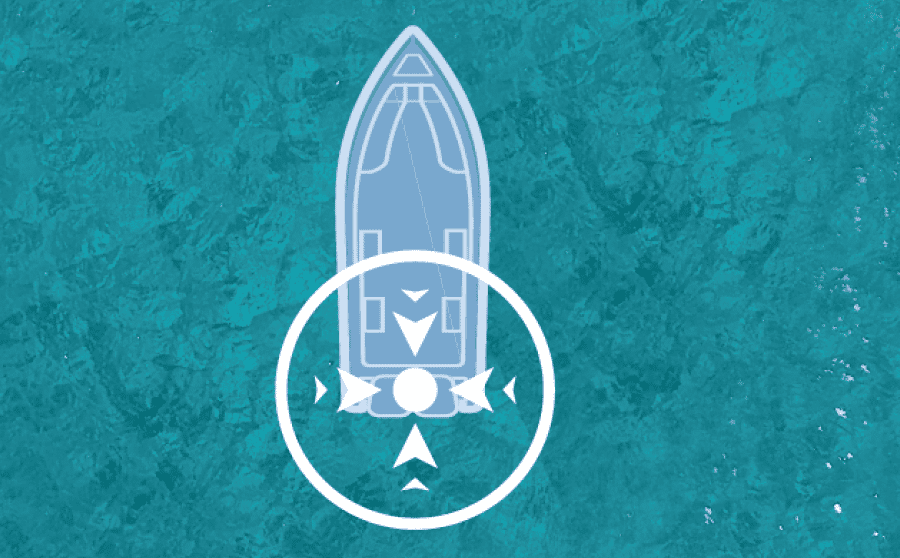

Stay the course, hold position, 360° movement and more!

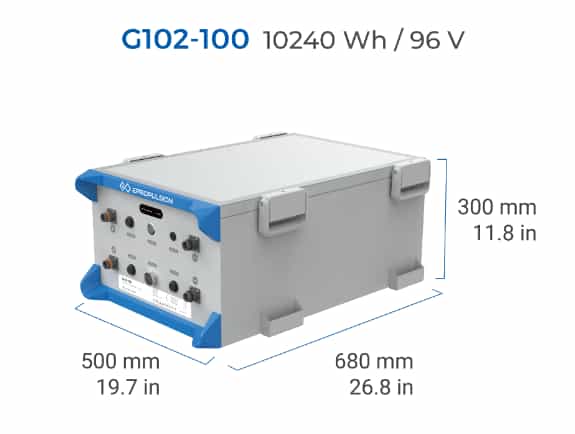

Information about the battery of ePropulsion Pod 20
The G102-100 battery is fully compatible with your 96V ePropulsion Pod 20 pod motor. The batteries are safe and reliable, and thanks to the higher voltage, they are more efficient. The LiFePO4 batteries have a high energy density with an extremely long lifespan.

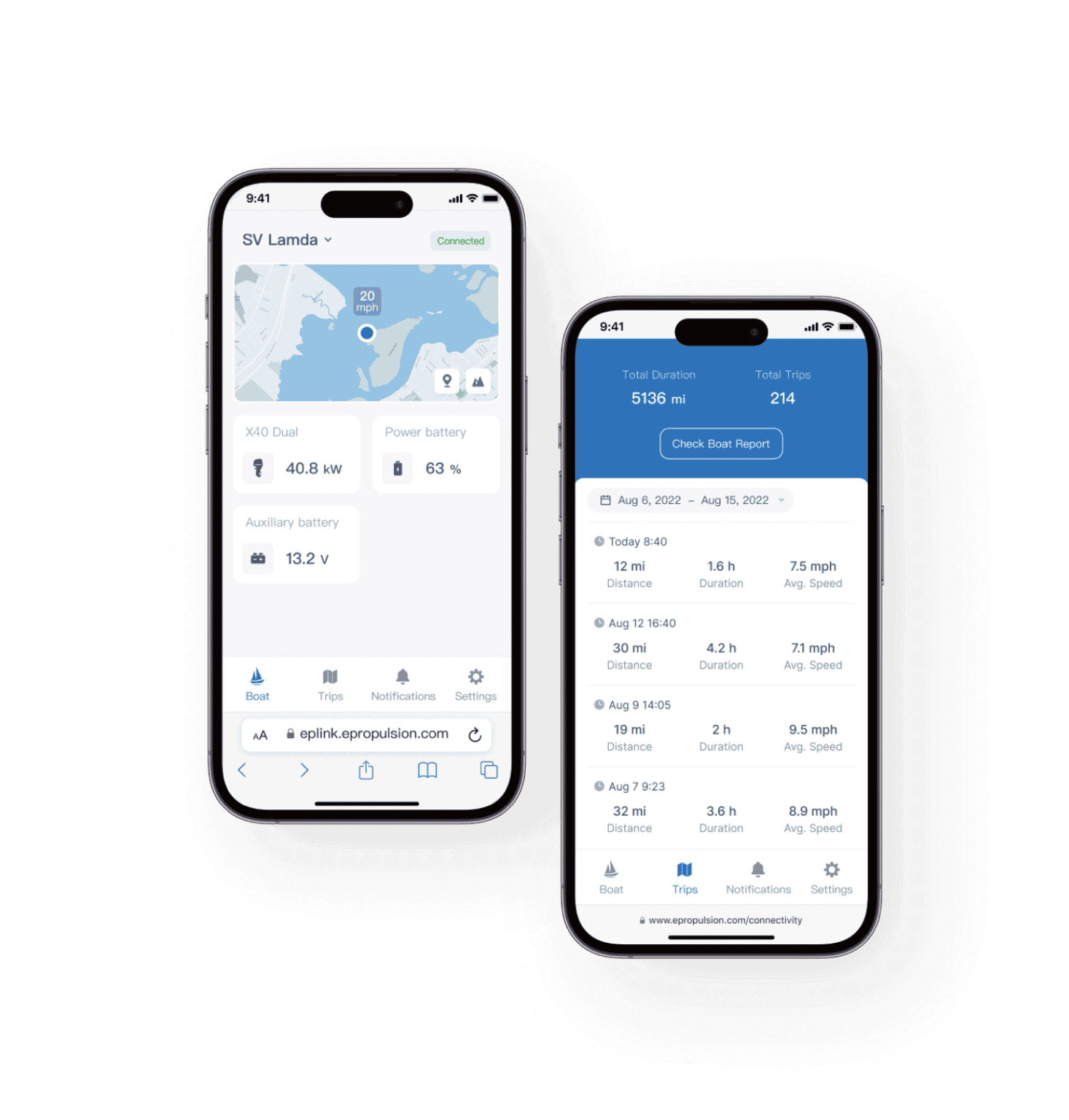

The integrated ePropulsion Connectivity Service keeps you updated in real-time about the status of your boat and offers advanced monitoring, reporting, and trip tracking features.
The manufacturer ePropulsion
ePropulsion is an innovative manufacturer of electric drives with the goal of further advancing e-mobility in water sports. The idea was conceived in 2012 by four young engineers in Hong Kong.
With the aim of making environmentally friendly, clean, and quiet motors competitive, they have since designed numerous models. These include the Spirit 1.0 PLUS, Navy 6.0 EVO, or the I-Series inboard and X-Series outboard motors. The models are characterized by a fantastic price-performance ratio - of course, also thanks to manufacturing in the Far East.
More information about the pod drives
ePropulsion Technology Limited produces electric boat drives without gears and with a high-quality brushless DC motor. The motors are therefore extremely quiet and low-maintenance. ePropulsion offers boat motors with a wide range of functions such as GPS. Of course, there are also suitable lithium batteries and chargers in the range.
The motors in elegant design combined with powerful batteries ensure long-lasting performance. They are easy to handle, safe, and technically up to date. They are therefore excellent for entering e-mobility on the water.
