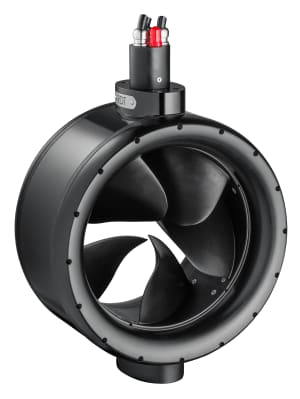

<p>Rim Drive 50 kW Podmotor </p>
Input power: 50 kW
Status:
available
Shipping:
3-4 weeks
56.999,00 €
incl. 19% VAT
, excl.
Product configurator
Pod motor
1 x Rim Drive Pod 50
available
50 kW
€56,999.00
Selected
Charger
Simarine display
available
€1,199.00
Optional
1 x Rim Drive safety kit pod from 25 kW
available
€660.00
Selected
1 x Single control lever (side-mounted)
available
€589.00
Selected
1 x Single control lever (top mounting)
available
€589.00
1 x Single control lever (Comfort, top-mounted)
available
€589.00
1 x Rim Drive Pod cable set 25-50 kW
available
€999.00
Selected
Summary
1 x Rim Drive Pod 50
€56,999.00
1 x Rim Drive safety kit pod from 25 kW
€660.00
1 x Single control lever (side-mounted)
€589.00
1 x Rim Drive Pod cable set 25-50 kW
€999.00
Total price
€59,247.00
Properties Rim Drive Pod 50
Input power
50 kW
comparable thrust
75 PS
comparable speed
60 horsepower
thrust
1650 lbs
Voltage
48 V
rotations per minute
1200 rpm
weight
75 kg
Noise level
almost silent
display
yes
Recuperation
yes
Speed control
stepless
saltwater resistant
yes
cooling
air
propeller
Plastic
maximum boat weight
25000 kg
Safety of Rim Drive Pod 50
-
All materials are saltwater resistant, the anode is usually located below the motor.
-
Fishing lines and plants can hardly harm the engines.
-
If a single propeller blade is defective, it can be easily replaced by yourself.
-
A rim drive contains no oils, lubricants or seals.
-
The first motors with Rim Drive technology have been in use since 1929
Comfort of the Rim Drive Pod 50
-
Low weight and narrow dimensions. (also facilitates installation)
-
Stepless speed control ensures efficient operation and easy maneuverability.
-
Essential accessories: throttle, cable set, safety kit
-
Optional accessories: Functional display with integrated communication, shore power kit
-
Also available as a rotatable pod motor (optional)
Comparison of 30 kW pod motors
|
|
|
|
|
|
|
Rim Drive Pod 50 | Fischer Panda 30 kW 1200 rpm POD | Rim Drive Pod 30 | Fischer Panda 50 kW 1200 rpm POD | |
| Price | 56.999,00 € | On request | 29.699,00 € | On request |
| Availability |
available
|
upon request
|
available
|
upon request
|
| Shipping | 3-4 weeks | upon request | 3-4 weeks | upon request |
| Input power | 50 kW | 32 kW | 30 kW | 53 kW |
| comparable thrust | 75 PS | - PS | 52 PS | - PS |
| weight | 75 kg | 90 kg | 70 kg | 138 kg |
| rotations per minute | 1200 rpm | 1200 rpm | 1000 rpm | 1200 rpm |
| Recuperation | yes | - | yes | - |
Technology of the Rim Drive Pod 50
-
A rim drive accelerates from zero to full speed within 1.5 seconds.
-
Very high efficiency, only slightly higher than with normal electric motors with shaft
-
No wear parts and 100% maintenance-free. The bearings are water-lubricated and last for thousands of hours under normal use.
-
Recuperation possible while sailing or standing still in the water. The batteries recharge while driving at 4 knots or more.
-
You can freely choose the direction of rotation of the motors, which optimizes maneuverability, especially in dual motor configurations
-
Rim Drive also offers special underwater motors for very deep waters (used in submarines)
Range of the Rim Drive Pod 50
Travel time and range depend on the battery. In an example with a 20,000 kg boat and a 100 kWh battery, we have the following measurements:
✓ At full load, the battery lasts just under 2 hours and the boat reaches a speed of 18 km/h. The range was 36 km.
✓ At 1/2 power, the driving pleasure lasts for a 4-hour trip on the water at a marching speed of 14 km/h and a range of 54 km.
✓ At 1/5 of the power, a speed of 12 km/h was reached for 10 hours. In total, a range of 120 km with just one battery charge. Those who plan longer and more leisurely tours on the water can go much further with less power.
Installation of a pod motor
Due to the current cookie settings, the Youtube video cannot be displayed.
Rim Drive Technology batteries
Rim Drive uses its own LiFePO4 batteries. The motors are perfectly matched to the lithium batteries. The batteries have a relatively good price-performance ratio on the market and a comparatively light weight. Alternatively, the greenboatsolutions batteries from the solar sector are also suitable.
You can see on the individual motors which batteries are suitable due to their performance and capacity. The larger the battery, the better the price per kWh. The 48 V 200 Ah batteries cost less than 500€ per kWh.
Special feature of external rotor / ring motors
The special feature of the Rim Drive Technology drives is the shape of the ring, so that the drives do not have a classic propeller shaft. The design has the advantage that nothing can get caught in a shaft and if damaged, the propeller blades can be replaced individually. The propeller blades are very sturdy and resistant.
The electric winding is located in the outer housing (stator). The housing itself is cast and does not contain any seals. The inner housing (rotor) with the magnets and propeller blades is also cast, so that no corrosion can occur.
The manufacturer Rim Drive Technology
The Dutch company Rim Drive Technology offers electric boat motors with a power range from 0.5 kW to 50 kW. The existing products are constantly being further developed and new variants are regularly added.
All components are designed and developed in the Netherlands. RDT is committed to the spread of electric drives and compensates for all CO2 emissions. In total, RDT has been developing the motors since 2018.
The prices of the motors are clearly in the premium segment, but especially in the higher power range, there is not much that can beat the manufacturer!
Brochure Power Curves
Reference document - Rim Drive Technology
User manual POD
Catalogue - Rim Drive Technology
