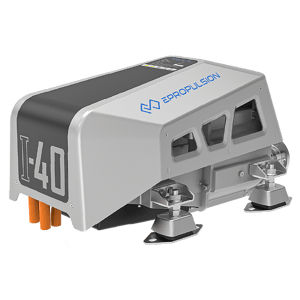

ePropulsion I-40 Inboard
Input power: 40 kW
Status:
available
Shipping:
2-3 months (from Q2/Q3 2024 onwards)
10.499,00 €
incl. 19% VAT
, excl.
The motor runs on 96V and must be installed and regularly maintained by a high-voltage technician. On request, we also offer the installation with.
Product configurator
Inboard motor
1 x ePropulsion I-40 Inboard
available
40 kW
€10,499.00
Selected
Motor
4 x ePropulsion G102-100
available
40.96 kWh
€23,996.00
Selected
2 x ePropulsion G102-230
available
23,55 kWh
€25,998.00
Battery
1 x ePropulsion I-Series Charger
available
3.300 W
€680.00
Selected
Accessories
1 x ePropulsion Smart Display
available
€500.00
Selected
1 x ePropulsion Smart Remote Control
available
€400.00
Selected
1 x ePropulsion G-Series Power Output Set 10m
available
€800.00
Selected
ePropulsion DC-DC converter 96V
available
€445.00
Optional
1 x ePropulsion power distribution block 250A
available
incl.
Selected
3 x ePropulsion G-Series Connection Cable 1.5m
available
€900.00
Selected
3 x ePropulsion G-Series Connection Cable 0.5m
available
€720.00
3 x ePropulsion G-Series Connection Cable 5m
available
€1,650.00
1 x ePropulsion ESSA communication cable 1 m
available
€28.00
Selected
1 x ePropulsion COM extension cable 5 m
available
€55.00
Selected
1 x ePropulsion COM extension cable 5 m
available
€90.00
1 x Battery CAN cable set 5m
available
€88.00
Selected
1 x ePropulsion ESSA 3-way T-connector
available
€28.00
Selected
ePropulsion ESSA 5-way T-connector test
available
€55.00
Optional
ePropulsion BUS remote switch "ON/OFF" incl. terminator
available
€138.00
Optional
Charger
ePropulsion solar charge controller 2 kW 96V
available
€530.00
Optional
Summary
1 x ePropulsion I-40 Inboard
€10,499.00
4 x ePropulsion G102-100
€23,996.00
1 x ePropulsion I-Series Charger
€680.00
1 x ePropulsion Smart Display
€500.00
1 x ePropulsion Smart Remote Control
€400.00
1 x ePropulsion G-Series Power Output Set 10m
€800.00
1 x ePropulsion power distribution block 250A
incl.
3 x ePropulsion G-Series Connection Cable 1.5m
€900.00
1 x ePropulsion ESSA communication cable 1 m
€28.00
1 x ePropulsion COM extension cable 5 m
€55.00
1 x Battery CAN cable set 5m
€88.00
1 x ePropulsion ESSA 3-way T-connector
€28.00
Total price
€37,974.00
Properties ePropulsion I-40 Inboard
kill switch
Yes
Input power
40 kW
comparable thrust
80 PS
Voltage
96 V
rotations per minute
1500 rpm
weight
75 kg
Noise level
almost silent
display
board computer with digital display
Speed control
stepless
saltwater resistant
Yes
cooling
water
propeller
plastic
length
860 mm
width
485 mm
height
420 mm
control
Long distance gas/tiller
Info about the I-40 inboard from ePropulsion
-
Housing and plug connection are waterproof according to IP 67.
-
Circa 60% space saving on the engine. The battery takes up comparable space to the previously installed tank.
-
The ePropulsion G102-100 battery is ideal for the I-40 kW motor. At least 4 batteries are required. Third-party batteries can not be used.
-
Emergency stop magnetic chip - the electric motor stops as soon as the chip is removed
-
Integrated GPS provides real-time, accurate information about the speed and range of the battery on an LCD.
-
Battery alarm: An audible warning signal informs you of low battery status.
EPropulsion I-40 - Comfort in operation
-
The control is possible forward and backward thanks to the comfortable handle.
-
Installation is easy and uncomplicated without tools by hand at the rear.
-
Maximum stability due to patented holder system.
-
Plug & Play connection to batteries.
-
Infinitely variable speed control results in efficient consumption.
-
Extensive range of accessories and state-of-the-art charging technology available.
50 kW inboard engine compared
|
|
|
|
|
|
|
|
|
|
ePropulsion I-40 Inboard | Molabo ARIES i50 | Elco EP-100 | BOSCH SMG180 | Torqeedo Deep Blue 50i 1800 | Torqeedo Deep Blue 50i 1400 | RiPower 100 IB | |
| Price | 10.499,00 € | On request | 23.399,00 € | On request | On request | On request | 22.999,00 € |
| Availability |
available
|
available
|
available
|
upon request
|
upon request
|
upon request
|
upon request
|
| Shipping | 2-3 months | 3-4 weeks | 6 weeks | on request | 3-4 weeks | 3-4 weeks | 1-3 months |
| Input power | 40 kW | 50 kW | 42.5 kW | 60 kW | 55.1 kW | 55.1 kW | 100 kW |
| comparable thrust | 80 PS | 70 PS | 100 PS | 122 PS | 80 PS | 80 PS | - PS |
| weight | 75 kg | 44 kg | 335 kg | 30 kg | 80 kg | 80 kg | - kg |
| rotations per minute | 1500 rpm | 4350 rpm | - rpm | 12800 rpm | 1800 rpm | 1400 rpm | - rpm |
| cooling | water | water | air | - | water | water | water |
Technical features of the ePropulsion I-40
-
The motor is almost maintenance-free. Only the anodes and lubrication points need to be checked annually.
-
The I-40 kW is one of the few inboards produced in a high volume production line. Thanks to the origin from Asia, the prices can be seen in comparison with the competition.
-
Low weight - 75 kg including all components.
-
Very modern and sporty design with blue color accents. The model was awarded the IF Design Award in 2015.
-
Optimized propeller efficiency thanks to intensive development and research in the field of fluid dynamics.
Range from ePropulsion I-40
Travel time and range naturally depend on the battery. With a 40 kWh battery, the following range can be achieved:
At full load, the ePropulsion I-40 lasts for about an hour.
At 1/2 power, the driving pleasure lasts for a 2-hour trip at a decent cruising speed.
For longer trips on the water, less power allows for significantly greater distances. At 1/8 power, 40 kWh is easily sufficient for 8 hours of travel at an economical speed.
The battery should be determined based on the boat's weight and the planned range.
EPropulsion I-40 Inboard in use
Info about the control of the I-40
The smart throttle from ePropulsion comes with a 5" display for the best possible overview of all driving values. The display is thus significantly larger than in the smaller outboards. Visually, the color display makes a lot in any case.
For release, there will be a top and side throttle. In each case in single or dual version. So a twin system is possible for each of the inboards. Other controls have already been announced.
The manufacturer ePropulsion
Since then, they have designed numerous models intending to make environmentally friendly, clean and quiet engines competitive. These include the Spirit 1.0, Navy 3.0, or Navy 6.0, all of which offer top value for money.
Further information about the Navy E-Drives
The motors in elegant design in combination with the powerful batteries ensure long-lasting performance. They are easy to handle, safe and technically state-of-the-art. They are therefore ideally suited for the entry into e-mobility on the water.
