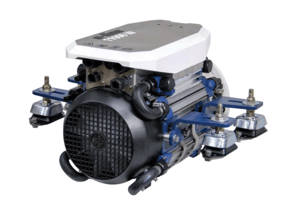

VETUS E-LINE inboard motor 11 kW
Input power: 13,3 kW
Status:
available
Shipping:
3-4 weeks
6.599,00 €
incl. 19% VAT
, excl.
Electric inboard with 11 kW power, suitable for boats up to approximately 7.5 tons displacement. The inboard with water cooling from Vetus can be operated with a 48 V battery. The quiet electric motor is continuously regulated and can stop quickly.
Product configurator
Inboard motor
1 x VETUS E-LINE 11 kW
available
13,3 kW
€6,599.00
Selected
Motor
2 x Ultimatron 48 V 150 Ah Bluetooth
available
15.36 kWh
€3,998.00
Selected
2 x 48V 200Ah LiFePO4
orderable
10,24 kWh
€6,398.00
Battery
1 x ACES charger 48V/25A 1350W
available
1.350 W
€449.00
Selected
1 x ACES charger 48V/15A 800W
upon request
800 W
€399.00
1 x ACES charger 48V/35A 2000W
available
2.000 W
€599.00
1 x ACES charger 48V/50A 3300W
available
3.300 W
€999.00
Accessories
1 x VETUS V-CAN control panel
available
incl.
Selected
Battery Monitor BMV-700
available
€154.00
Optional
ECTIVE BM X Battery Monitor
available
€169.00
Optional
1 x VETUS key switch
available
incl.
Selected
1 x VETUS Side Control Lever Aluminum
available
€770.00
Selected
1 x VETUS Side Control Lever Stainless Steel
available
€1,049.00
1 x VETUS freshwater cooling circuit
available
€149.00
Selected
1 x VETUS Saltwater Cooling Circuit
available
€349.00
VETUS 7" multifunction display
available
€1,999.00
Optional
Charger
VETUS shore power set
available
€870.00
Optional
Main switch 48V
available
€54.00
Optional
Summary
1 x VETUS E-LINE 11 kW
€6,599.00
1 x VETUS V-CAN control panel
incl.
1 x VETUS key switch
incl.
1 x VETUS Side Control Lever Aluminum
€770.00
1 x VETUS freshwater cooling circuit
€149.00
2 x Ultimatron 48 V 150 Ah Bluetooth
€3,998.00
1 x ACES charger 48V/25A 1350W
€449.00
Total price
€11,965.00
Properties VETUS E-LINE 11 kW
Input power
13.3 kW
comparable thrust
22 PS
shaft power
10 kW
Voltage
48 V
torque
70 Nm
rotations per minute
1600 rpm
weight
71 kg
Noise level
almost silent
display
board computer with digital display
Speed control
stepless
saltwater resistant
Yes
cooling
water
propeller
not included
maximum boat weight
8000 kg
recommended boat length
11 m
length
485 mm
width
504 mm
height
335 mm
shafttype
no shaft
Recuperation
no
Safety of the 11 kW VETUS E-Line
-
Powerful acceleration, better than a diesel engine
. -
Integrated water cooling ensures worry-free driving even at high continuous power. Optionally, there are also affordable models with air cooling.
-
Additional battery monitoring protects the batteries from deep discharge and damage
. -
Easy battery monitoring with the illuminated display
. -
Active electronic brake (up to 2,500 RPM)
Technology from the 11 kW E-Line
-
The drive foundation can be easily adapted to the installation site and the existing shaft system.
-
3 driving modes with different speed: ECO (1200 rpm), NORMAL (1500 rpm) and POWER (1600 rpm)
-
Integrated V-CAN bus system and NMEA 2000 compatibility
-
Clutch (optional): Kombiflex 1225 / 1230 or Bullflex 0125 / 011
-
12.7 mm (1/2") inlet and outlet of the water cooling
-
Accessories such as display, throttle and other accessories are not included with the engine.
10 kW inboard engine compared
|
|
|
|
|
|
|
|
|
|

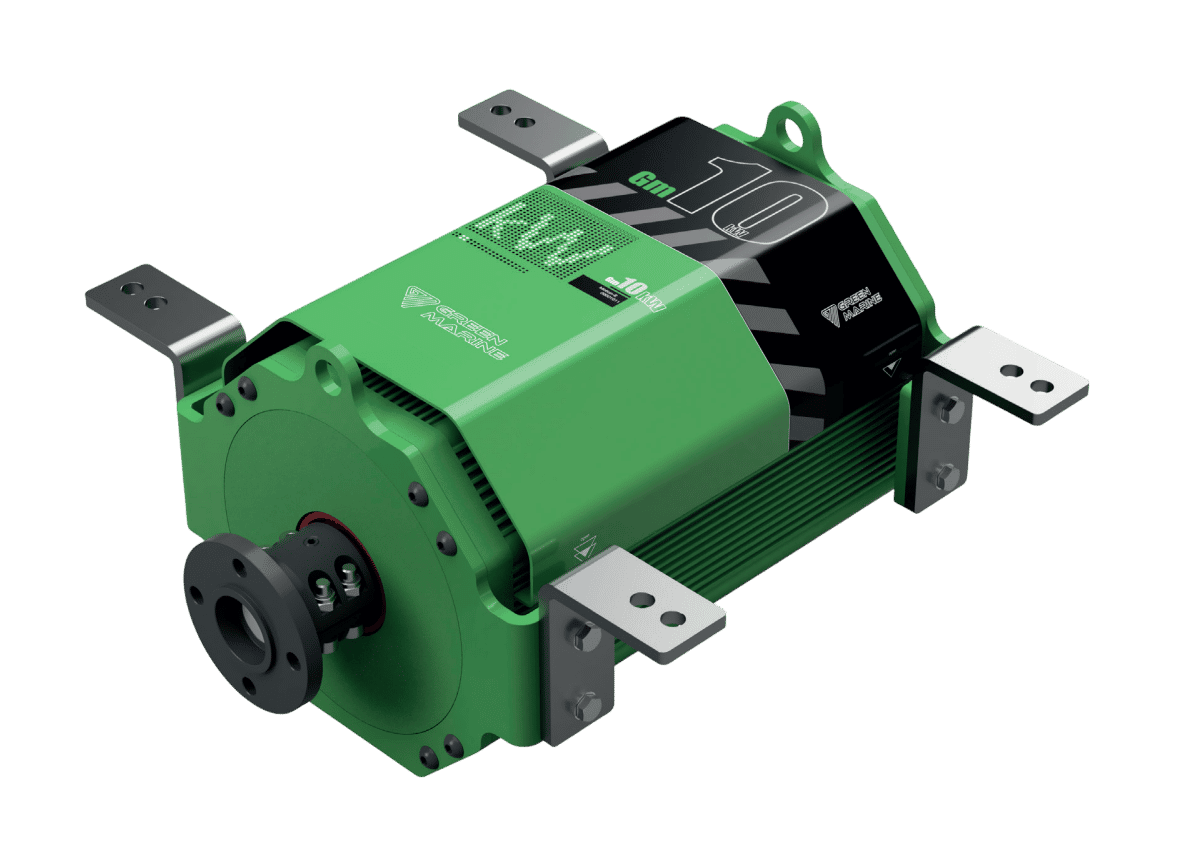

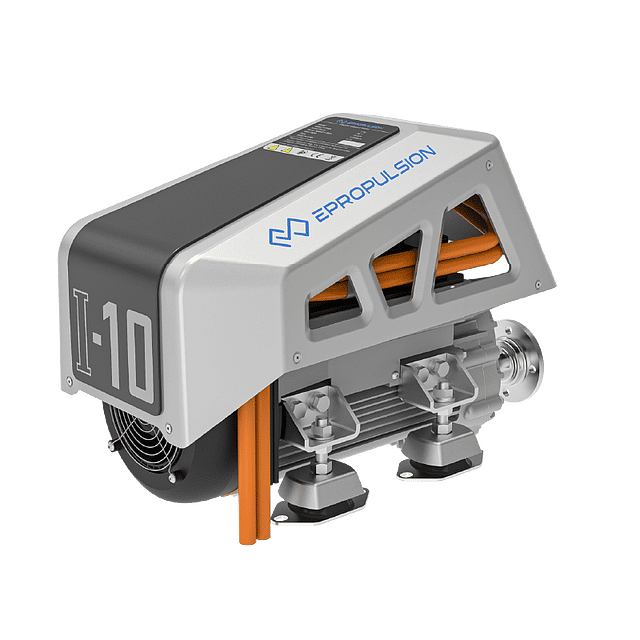

VETUS E-LINE 11 kW | WaterWorld 10.0 | Aquamot Trend 11.0MA | Aquamot MA110 | Elco EP-20 | ePropulsion I-10 Inboard | E-Tech 10 WG | |
| Price | 6.599,00 € | 6.799,00 € | 5.999,00 € | 7.849,00 € | 7.699,00 € | 6.099,00 € | 10.299,00 € |
| Availability |
available
|
available
|
available
|
available
|
available
|
available
|
available
|
| Shipping | 3-4 weeks | 1-2 weeks | 3-4 weeks | 3-4 weeks | 1-2 weeks | 2-3 business days | 3-4 weeks |
| Input power | 13.3 kW | 11 kW | 12.35 kW | 12.35 kW | 10 kW | 10 kW | 10 kW |
| comparable thrust | 22 PS | 20 PS | 20 PS | 20 PS | 20 PS | 20 PS | - PS |
| weight | 71 kg | 76 kg | 45 kg | 45 kg | 33 kg | 43 kg | - kg |
| rotations per minute | 1600 rpm | 1500 rpm | 2300 rpm | 2300 rpm | 1800 rpm | 1500 rpm | - rpm |
| torque | 70 Nm | 64 Nm | - Nm | - Nm | - Nm | - Nm | - Nm |
| cooling | water | air | air | air | air | - | water |
11 kW VETUS electric motor - high comfort
-
Mostly maintenance-free, as the motors have no gearbox and no clutch.
-
Fast stopping within one boat length and stepless reversing thanks to active brake.
-
Long lasting and high quality materials
-
Very compact, requires little space for installation.
-
IP65 protected against splashing water. Bilge pump recommended.
VETUS E-Line - 11 kW electric motor
Due to the current cookie settings, the Youtube video cannot be displayed.
Batteries for the VETUS E-Line drives
For VETUS boat engines, we recommend lightweight, safe, and durable lithium batteries (LiFePo4). AGM batteries are also possible, but they make the system significantly heavier, more complex to install, and less durable.
The 10 kW motor draws up to 250 A at full load. This should definitely be taken into account when selecting the battery. The batteries from Ultimatron have by far the best price-performance ratio on the market. We recommend two batteries with 100 Ah each. Depending on the desired driving time, we will be happy to put together a suitable complete system for you.
Accessories for the VETUS E-Line 11 kW
The VETUS propulsion system can be composed of any number of components from VETUS. Propulsion and control are essential for functionality. Depending on the battery and monitoring, a VETUS display can also be used. Power supply via a generator or solar panels can also be integrated.
VETUS has patented several protective functions for its engines. This includes the motor controller, which monitors the battery charge level. All important information can then be displayed on the monitoring panel. There is also an LED display and even audible signals.
Info about the manufacturer VETUS
More than 20 years of experience in the field of boat engines have gone into the product development of the VETUS E-Line series. Product design and appearance of the engines are at a very high level. Price-wise, the engines are rather in the upper range in comparison and offer an equally good quality. All components are matched and communicate with each other.
.Scope of delivery VETUS E-LINE 11 kW
-
1x E-LINE 110 motor
-
1x E-DRIVE control panel
-
1x E-DRIVE key switch
-
1x DC-DC converter from 48V to 12V for CAN power supply
-
1x V-CAN Hub
-
3x V-CAN cable 1m
-
1x V-CAN cable 5m
-
2x V-CAN Terminator
Download VETUS files
VETUS E-Line User Manual
VETUS E-Line Installation Guide
VETUS E-Line accessories
VETUS E-Line brochure
