WaterWorld 20.0 Electric Inboard

Conversions are in full swing - Reserve a spot with a boat builder in good time for the conversion to an inboard or pod motor now!

WaterWorld 20.0
WaterWorld 20.0
WaterWorld 20.0 - image 0
WaterWorld 20.0 - image 1
WaterWorld 20.0 - image 2

WaterWorld 20.0 Electric Inboard

Input power: 20 kW

Status:

available

Shipping:

3-4 weeks

9.199,00 €
incl. 19% VAT , excl.

applepay
banktransfer
klarnapaylater
klarnapaynow
creditcard
paypal

Electric inboard motor with 20 kW power suitable for boats up to approx. 10 tons displacement or light planing boats. The motor with remote throttle control from WaterWorld can be regulated steplessly, is salt water resistant and has an on-board computer.


Product configurator

Inboard motor

WaterWorld 20.0

1 x WaterWorld 20.0

available

20 kW

€9,199.00

Selected

Motor

Ultimatron 48 V 150 Ah Bluetooth

3 x Ultimatron 48 V 150 Ah Bluetooth

available

23.04 kWh

€5,997.00

Selected

WaterWorld 48-6800

3 x WaterWorld 48-6800

available

6,8 kWh

€8,847.00

WaterWorld 48-13600

3 x WaterWorld 48-13600

available

13,6 kWh

€16,497.00

48V 200Ah LiFePO4

3 x 48V 200Ah LiFePO4

orderable

10,24 kWh

€9,597.00

Battery

ACES charger 48V/25A 1350W

1 x ACES charger 48V/25A 1350W

available

1.350 W

€449.00

Selected

ACES charger 48V/15A 800W

1 x ACES charger 48V/15A 800W

upon request

800 W

€399.00

ACES charger 48V/35A 2000W

1 x ACES charger 48V/35A 2000W

available

2.000 W

€599.00

ACES charger 48V/50A 3300W

1 x ACES charger 48V/50A 3300W

available

3.300 W

€999.00

Accessories

Flex coupling 4"

Flex coupling 4"

available

€229.00

Optional

Shaft coupling to 25 mm

Shaft coupling to 25 mm

available

€199.00

Optional

Wave coupling on 30 mm

Wave coupling on 30 mm

available

€229.00

Optional

Shaft coupling to 35 mm

Shaft coupling to 35 mm

available

€309.00

Optional

Wave coupling to 40 mm

Wave coupling to 40 mm

available

€269.00

Optional

4x flexible motor mount

4x flexible motor mount

available

€190.00

Optional

WaterWorld color display

1 x WaterWorld color display

available

incl.

Selected

WaterWorld Connect Bluetooth & GPS

1 x WaterWorld Connect Bluetooth & GPS

available

€399.00

Raymarine AXIOM +7

1 x Raymarine AXIOM +7

available

€999.00

Raymarine AXIOM +9

1 x Raymarine AXIOM +9

available

€1,799.00

Raymarine AXIOM +12

1 x Raymarine AXIOM +12

available

€3,449.00

Battery Monitor BMV-700

Battery Monitor BMV-700

available

€154.00

Optional

WaterWorld Top Gas Lever Ball

1 x WaterWorld Top Gas Lever Ball

available

€199.00

Selected

WaterWorld Top Gas Lever

1 x WaterWorld Top Gas Lever

available

€199.00

WaterWorld side gas lever ball

1 x WaterWorld side gas lever ball

available

incl.

WaterWorld double throttle

1 x WaterWorld double throttle

available

€1,049.00

Charger

ANL fuse holder socket

ANL fuse holder socket

available

€10.00

Optional

ANL fuse 500 A

ANL fuse 500 A

available

€10.00

Optional

WaterWorld recuperation

WaterWorld recuperation

available

€639.00

Optional

Main switch 48V

Main switch 48V

available

€54.00

Optional

Summary

1 x WaterWorld 20.0

€9,199.00

3 x Ultimatron 48 V 150 Ah Bluetooth

€5,997.00

1 x ACES charger 48V/25A 1350W

€449.00

1 x WaterWorld Top Gas Lever Ball

€199.00

1 x WaterWorld color display

incl.


Total price

€15,844.00



Properties WaterWorld 20.0

Input power

20 kW

comparable thrust

30 PS

Voltage

48 V

torque

96 Nm

rotations per minute

1600 rpm

weight

100 kg

Noise level

almost silent

display

board computer with digital display

Speed control

stepless

saltwater resistant

Yes

cooling

air

propeller

not included

maximum boat weight

10000 kg

recommended boat length

12 m

length

769 mm

width

290 mm

height

301 mm

shafttype

no shaft


Safety with the WaterWorld 20.0

  • One of the most affordable electric inboard drives on the market.
  • New: Even third-party batteries can be integrated into the display with the BatteryLink module (see configurator below). However, a very good setting of the shunt is important for this.

  • Unbeatable price-performance ratio of WaterWorld inboard engines.
  • Future-proof. The used value of combustion engines is decreasing with increasing regulations and more environmental awareness. With an electric motor, you are on the safe side.
  • Absolutely reliable. Long-term tested and proven technologies for your boat.
  • Thanks to the high-quality aluminium surface, it can also be used in saltwater or the sea air.
Safety with the WaterWorld 20.0

Comfort with WaterWorld 20.0

  • WaterWorld motors are easy to maintain and update. The controller can be quickly updated and replaced if necessary.
  • Stepless speed control: By precisely controlling the speed, the WaterWorld inboard offers excellent better control over the boat.
  • Including a separate battery monitor: Very attractive design, easy operation, and various possibilities for individual adjustment.
  • Very quiet and clean. Practically no engine noise inside your boat. Of course also no exhaust fumes and emissions.
  • New: There is now also an app for Apple iOS. The app can be connected to the WaterWorld engine and thus displayed on the iPhone or iPad. It is also now possible to integrate the WaterWorld display into existing Simrad or Raymarine networks.

Comfort with WaterWorld 20.0

15 kW inboard engine compared

WaterWorld 20.0
WaterWorld 20.0

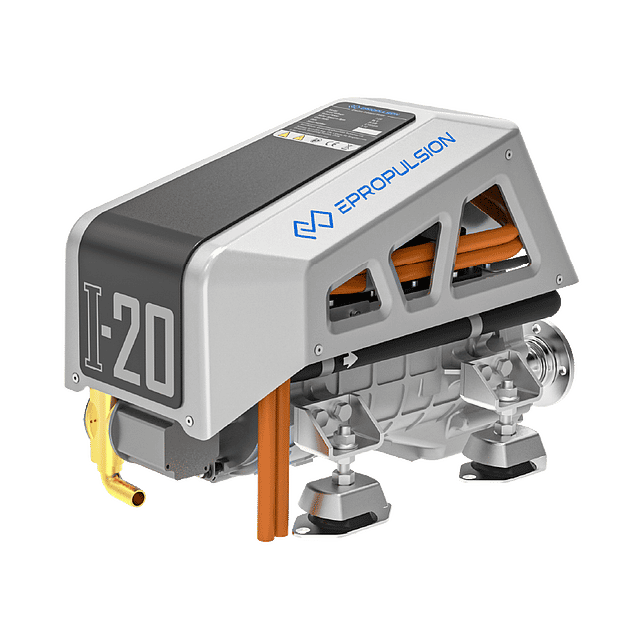

ePropulsion I-20 Inboard
ePropulsion I-20
Aquamot MA160
Aquamot MA160
Elco EP-40
Elco EP-40 Innenborder
E-Tech 15 WG
E-Tech 15 WG

WaterWorld 20.0

ePropulsion I-20 Inboard Aquamot MA160 Elco EP-40 E-Tech 15 WG
Price 9.199,00 €8.349,00 €8.549,00 €15.599,00 €12.399,00 €
Availability
available
available
available
available
available
Shipping 3-4 weeks 2-3 months 3-4 weeks 6 weeks 3-4 weeks
Input power 20 kW 20 kW 17.97 kW 17 kW 15 kW
comparable thrust 30 PS 40 PS 30 PS 40 PS - PS
weight 100 kg 45 kg 65 kg 180 kg - kg
rotations per minute 1600 rpm 1500 rpm 2300 rpm - rpm - rpm
torque 96 Nm - Nm - Nm - Nm - Nm
cooling air water air air water

20 kW WaterWorld technic

  • The motor is mounted directly on the existing shaft system.
  • No gearbox that causes losses in efficiency or noise on board.
  • Very efficient motors for a long range without additional batteries.
  • One unit for electric drive and controller. No water cooling necessary.
  • We recommend to have the installation carried out by a specialist. The installation is rather complex and should be adjusted in detail to your boat.
20 kW WaterWorld technic

Application of WaterWorld 20.0

Are you used to driving with a diesel engine? Switching to our electric drive is easy and you don't have to make any compromises. Since the WaterWorld systems require little maintenance, the switch to electric boats will pay off in the long run.


WaterWorld is at heart a technology company. As an official dealer, greenboatsolutions can guarantee fast availability and offers individual advice. The electric drives from WaterWorld complement the market's portfolio of drives in the low power range, and in terms of price, the drives are at the forefront.

Application of WaterWorld 20.0

The WaterWorld inboard series

WaterWorld stands for the future world on the water. WaterWorld offers propulsion systems for boats with various power levels. The propulsion systems can be used on lakes, rivers and seas for different types of boats and ships.


WaterWorld brings a high level of technical design and high-quality processing and makes an excellent impression.

The WaterWorld inboard series

Battery for the WaterWorld 20.0

WaterWorld electric motors range from 4 kW to 20 kW of power. Some of the drives are still in development and in the long term, further options will certainly be added. Since the end of 2021, WaterWorld also offers its own lithium batteries. The batteries are specially designed for the drives and are technically extremely well designed.


However, the motors can also be combined with any lithium batteries. Depending on the boat and range, we will be happy to recommend an individual propulsion system.

Battery for the WaterWorld 20.0

Information about the manufacturer WaterWorld

The company WaterWorld offers individual installation possibilities. Especially optically, the inboards with their very simple and clean design make a great impression. The workmanship also looks very high quality for the relatively low price.

The environmental thought plays an overriding role for the company from the Netherlands, also because e.g. Amsterdam will be completely converted to a CO2 free shipping in the next years.
Information about the manufacturer WaterWorld

Details: Design and user-friendliness

Particularly striking is the visually appealing and large display for controlling the motors. On the one hand, Waterworld is ahead of most competitors in terms of appearance. On the other hand, the control unit also offers many setting options, which can be very interesting especially for battery usage.

Details: Design and user-friendliness

WaterWorld 20.0 Downloads

WaterWorld Guide

WaterWorld 20.0 drawing

WaterWorld brochure
