Order Ilmor ION 6 outboard motor
Input power: 6 kW
Status:
available
Shipping:
3-4 weeks (from April 2025)
On request

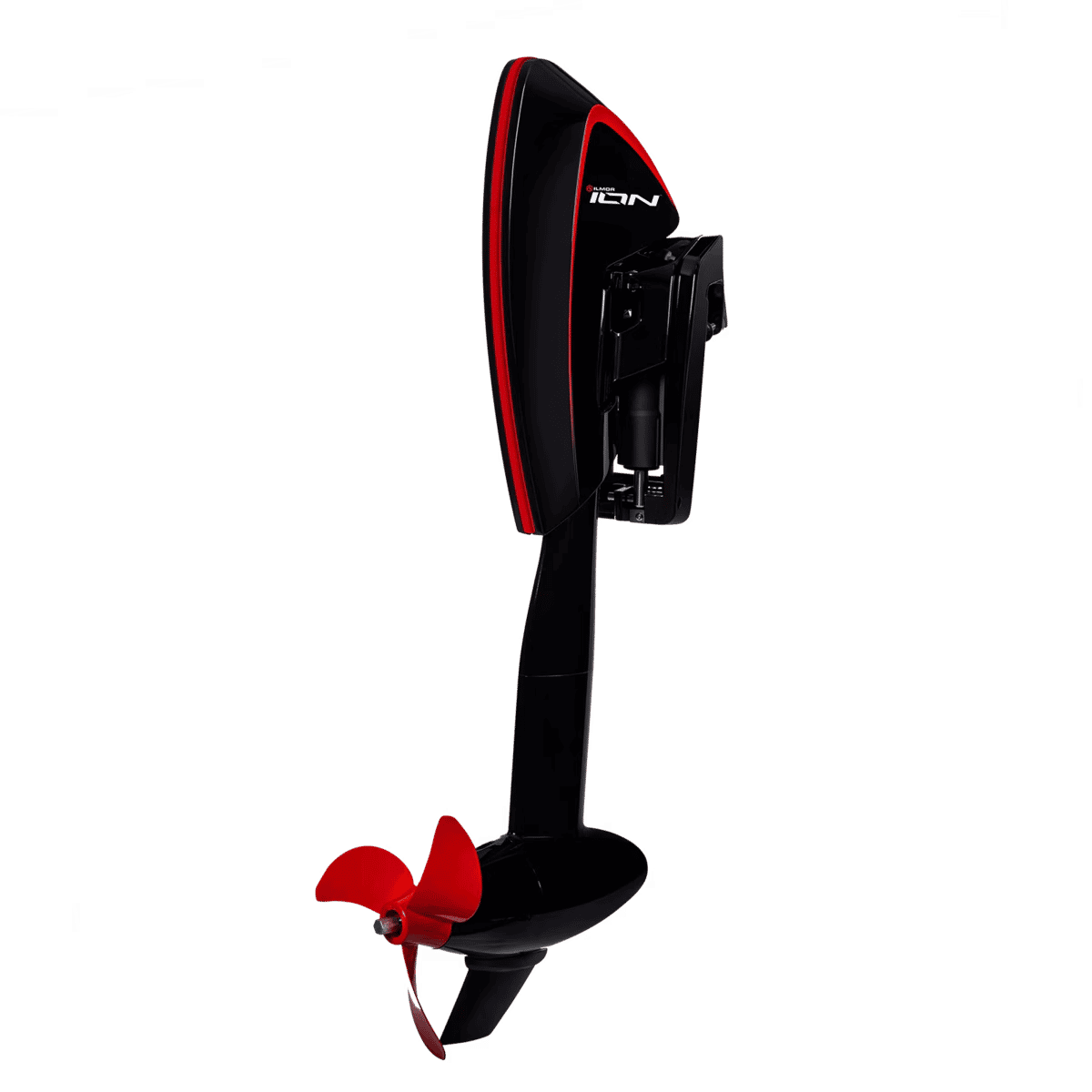

The ION 6 outboard motor from Ilmor in the USA has a power of 6,000 watts, suitable for boats up to approximately 3 tons displacement and light planing boats. The motor with remote control (R) from Ilmor features an integrated onboard computer with GPS range calculation and can be adjusted continuously.
shafttype
Product configurator
outboard
1 x Ilmor ION 6
available
6 kW
On request
Selected
Motor
1 x Ultimatron 48 V 100 Ah Bluetooth
available
5.12 kWh
€1,799.00
Selected
1 x Ultimatron 48 V 150 Ah Bluetooth
orderable
7,68 kWh
€2,499.00
Battery
1 x 48V 18A charger 900W
available
900 W
€229.00
Selected
1 x ACES Ladegerät 48V/10A 600W
available
600 W
€279.00
1 x ACES charger 48V/15A 800W
upon request
800 W
€399.00
1 x ACES charger 48V/25A 1350W
available
1.350 W
€449.00
1 x ACES charger 48V/35A 2000W
available
2.000 W
€599.00
1 x ACES charger 48V/50A 3300W
available
3.300 W
€999.00
Accessories
Battery Monitor BMV-700
available
€154.00
Optional
ECTIVE BM X Battery Monitor
available
€169.00
Optional
Charger
Main switch 48V
available
€49.00
Optional
Summary
1 x Ilmor ION 6
On request
1 x Ultimatron 48 V 100 Ah Bluetooth
€1,799.00
1 x 48V 18A charger 900W
€229.00
Total price
On request
Properties Ilmor ION 6
Input power
6 kW
comparable thrust
12 PS
comparable speed
8 horsepower
Voltage
48 V
Noise level
almost silent
weight
32 kg
Shipping weight
40 kg
display
On-board computer with color display
kill switch
Yes
shafttype
Short/Normal shaft
shaft length
63.7 cm
control
Remote gas/pin
Speed control
continuously
saltwater resistant
yes
cooling
air
propeller
plastic
tilting mechanism
powertilt
tiltable tiller
Yes
telescopic tiller
No
maximum boat weight
3000 kg
Warranty
2 Years
Safety with the Ilmor ION 6
-

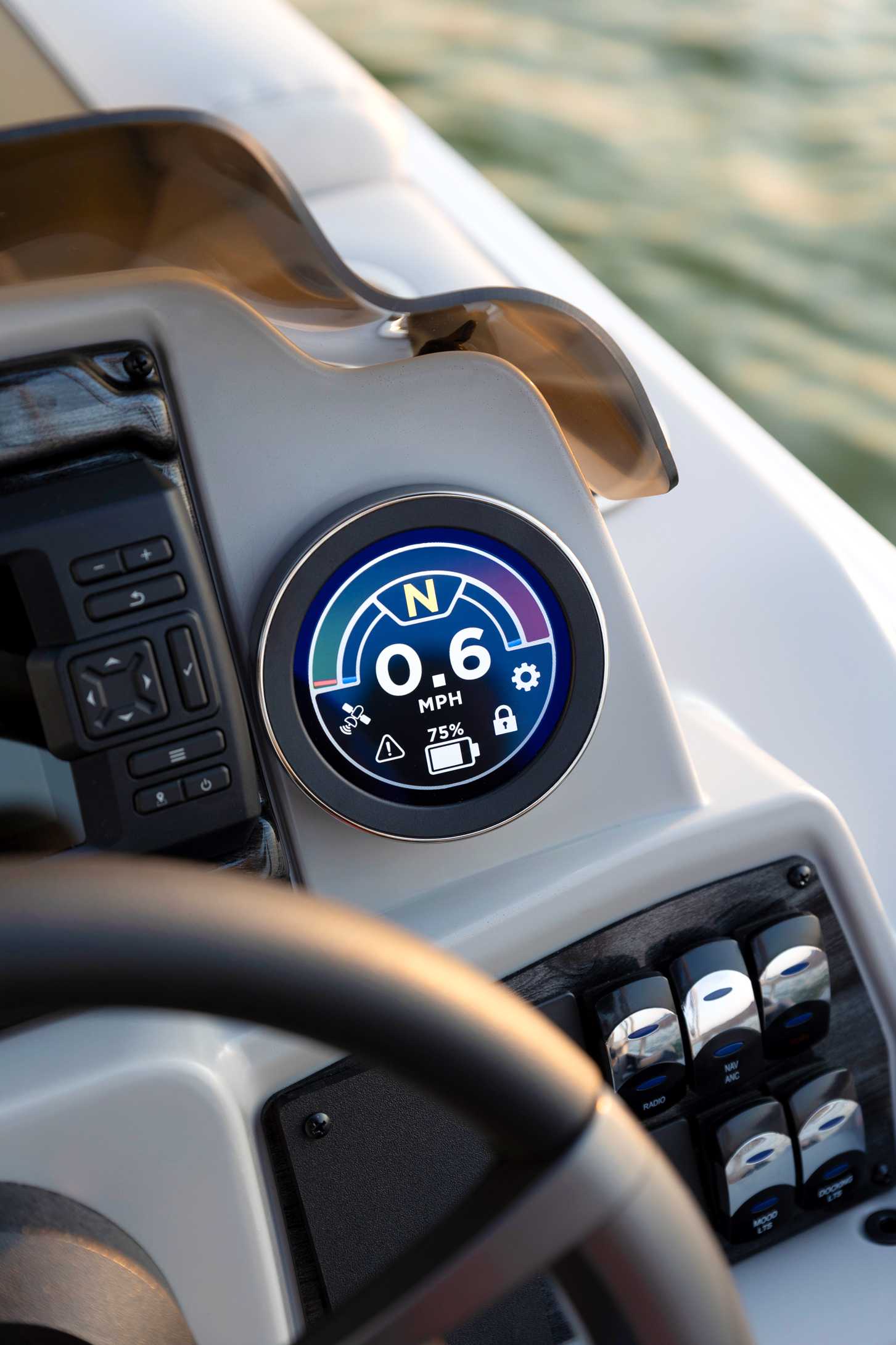

Integrated LED display with GPS for various functions and touchscreen
-
Any 48V batteries can be used (voltage range from 40 to 60 V)
-
Integrated dead man's switch (mechanical)
-
Classic 2 years warranty (1 year for commercial users)
-
The Ilmor ION 6 is protected against corrosion during intensive use in saltwater.
Technology of Ilmor ION 6
-
Eye-catching RGB light strip that can be color-customized as desired
-
Different Propellers: 3-blade propellers with 10.8" pitch or 5-blade propellers with 8.4" pitch
-
Brushless direct drive with tiller or remote control.
-
The electric motors from Ilmor are maintenance-free.
Comparison of outboard motors from 6 kW
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ilmor ION 6 | BLADE HALO 10.0 | ePropulsion Navy 6.0 EVO | Torqeedo Cruise 6.0 R | Mercury Avator 35e | Haswing Armada 10.0 | Mitek 9.9 | Elco EP-14 | Elco EP-20 outboard motor | Aquamot Trend 8.0 | Hy.G 6 kW | |
| Price | On request | €2,499.00 | €3,499.00 | €4,749.00 | €4,699.00 | €2,699.00 | €5,099.00 | €5,799.00 | €6,379.00 | €6,699.00 | €8,899.00 |
| Availability |
available
|
upon request
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
available
|
| Shipping | 3-4 weeks | 3-5 days | 2-3 business days | 3-4 business days | 1-2 weeks | 3-4 business days | 2-3 weeks | 3-5 business days | 3-5 business days | 3-6 weeks | 3-4 weeks |
| Input power | 6 kW | 6 kW | 6 kW | 6 kW | 4.4 kW | 6 kW | 7.2 kW | 6.2 kW | 8.4 kW | 8 kW | 7 kW |
| comparable thrust | 12 PS | 10 PS | 9.9 PS | 9.9 PS | 8 PS | 10 PS | 9.9 PS | 14 PS | 20 PS | 15 PS | 20 PS |
| Voltage | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V |
| weight | 32 kg | 24 kg | 36 kg | 21 kg | 21.3 kg | 27.7 kg | 28 kg | 38.5 kg | 38.5 kg | 52.2 kg | 19 kg |
Ilmor ION 6 Comfortable operation
-
Integrated electric hydraulic trim & tilt between 9° and 73°
-
Weight of the engine from 32 kg
-
3 different shaft lengths: short shaft (63.7 cm), long shaft (76.4 cm), and extra long shaft (88.9 cm)
-
The stepless control of speed ensures efficient power consumption.
-
Comparable thrust like a 12 PS motor, comparable speed of a 8 horsepower gasoline engine.
-
The installation is simple and straightforward at the stern of the tender, dinghy, or small boat with just a few hand movements.
Range of the Ilmor ION 6
Travel time and range depend on the boat and the battery. In an example with the Ilmor Ion 6.0 and the Ultimatron 48V 100Ah 5000 battery, we have the following measurements for a small Highfield inflatable boat:
→ Under full load, the battery lasts about 45 minutes. The maximum measured speed was around 23.5 km/h (12.5 knots). Within this short time, a range of 18 kilometers could be covered. (10 nautical miles).
→ If you plan longer and more leisurely trips on the water, you can actually go much further with less power. At 1 kW (1/6) of the power, a speed of 8 km/h (4.3 knots) was achieved for 5 hours. In total, this means a range of 40 km (21.5 nautical miles). And that with just one battery charge!
This is what the manufacturer says about the ION 6:
"The ION is a 6 kW electric outboard motor that combines style and performance with a very smooth driving experience. The ION 6 is packed with features not found in motors of similar size - thus, the ION sets new standards and offers the best-equipped electric outboard available today."
We are excited about the first tests .. It's best to contact us if you want to learn more!
The Ilmor Ion 6 in detail
Do you need a boating license for the Ilmor ION 6?
Country | Power | Ilmor ION 6 |
|---|---|---|
|
Germany 🇩🇪 |
up to 7.5 kW |
✅ no driving license required |
|
Austria 🇦🇹 |
up to 4.3 kW |
🚫 only with a license |
The manufacturer Ilmor from the USA
The ION 6kW motor is a premium electric outboard developed by experts, perfectly combining precision and style. The manufacturer Ilmor from the USA is known for high-performance diesel drives and has a very long history and experience.
The new ION 6 brings luxury and performance into harmony.
