Rim Drive 15 kW pod motor
Input power: 15 kW
Status:
available
Shipping:
3-4 weeks
13.999,00 €
incl. 19% VAT
, excl.
Product configurator
Pod motor
1 x Rim Drive Pod 15
available
15 kW
€13,999.00
Selected
Motor
2 x Ultimatron 48 V 150 Ah Bluetooth
available
15.36 kWh
€3,998.00
Selected
3 x Batterytechnology 48 V 100 Ah LiFePO4 battery
upon request
4,56 kWh
€8,547.00
2 x Batterytechnology 48 V 200 Ah LiFePO4 battery
available
9,12 kWh
€8,998.00
Battery
1 x ACES charger 48V/25A 1350W
available
1.350 W
€449.00
Selected
1 x ACES charger 48V/15A 800W
upon request
800 W
€399.00
1 x ACES charger 48V/35A 2000W
available
2.000 W
€599.00
1 x ACES charger 48V/50A 3300W
available
3.300 W
€999.00
Accessories
1 x Single control lever (Comfort, top-mounted)
available
€589.00
Selected
1 x Single control lever (side-mounted)
available
€589.00
1 x Single control lever (top mounting)
available
€589.00
1 x Rim Drive Pod cable set 8-15 kW
available
€410.00
Selected
Simarine display
available
€1,199.00
Optional
1 x Rim Drive safety kit pod up to 15 kW
available
€370.00
Selected
Battery Monitor BMV-700
available
€154.00
Optional
Charger
Main switch 48V
available
€54.00
Optional
Summary
1 x Rim Drive Pod 15
€13,999.00
1 x Single control lever (Comfort, top-mounted)
€589.00
1 x Rim Drive Pod cable set 8-15 kW
€410.00
1 x Rim Drive safety kit pod up to 15 kW
€370.00
2 x Ultimatron 48 V 150 Ah Bluetooth
€3,998.00
1 x ACES charger 48V/25A 1350W
€449.00
Total price
€19,815.00

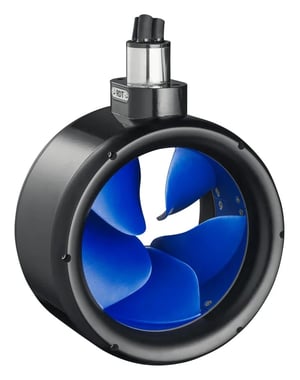

Properties Rim Drive Pod 15
Input power
15 kW
comparable thrust
28 PS
comparable speed
20 horsepower
thrust
425 lbs
Voltage
48 V
rotations per minute
1500 rpm
weight
22 kg
Noise level
almost silent
display
yes
Recuperation
yes
Speed control
stepless
saltwater resistant
yes
cooling
air
propeller
Plastic
maximum boat weight
7500 kg
Security of Rim Drive Pod 15
-
All materials are saltwater resistant, the anode is usually located below the motor.
-
Fishing lines and plants can hardly harm the engines.
-
If a single propeller blade is defective, it can be easily replaced by yourself.
-
A rim drive contains no oils, lubricants or seals.
-
The first motors with Rim Drive technology have been in use since 1929
Comfort of the Rim Drive Pod 15
-
Low weight and narrow dimensions. (also facilitates installation)
-
Stepless speed control ensures efficient operation and easy maneuverability.
-
Essential accessories: throttle, cable set, safety kit
-
Optional accessories: Functional display with integrated communication, shore power kit
-
Also available as a rotatable pod motor (optional)
Comparison of 15 kW pod motors
|
|
|
|
|
|
|
|
|
|
Rim Drive Pod 15 | Aquamot Trend 15.0FM | Aquamot F150e | Mitek 15 Pod | E-Tech 15 POD | Hy.G 14 kW Pod | SeaDrive Pod 15 | |
| Price | 13.999,00 € | 7.099,00 € | 11.299,00 € | 15.999,00 € | 11.899,00 € | 14.299,00 € | On request |
| Availability |
available
|
available
|
available
|
available
|
available
|
available
|
available
|
| Shipping | 3-4 weeks | 3-4 weeks | 3-4 weeks | 2-3 weeks | 3-4 weeks | 3-4 weeks | 3-4 weeks |
| Input power | 15 kW | 15 kW | 16.3 kW | 15 kW | 15 kW | 16 kW | 15 kW |
| comparable thrust | 28 PS | 30 PS | - PS | 20 PS | - PS | 40 PS | 15 PS |
| weight | 22 kg | 45.2 kg | 47 kg | - kg | - kg | 28 kg | 45 kg |
| rotations per minute | 1500 rpm | 1500 rpm | 1500 rpm | - rpm | - rpm | 1200 rpm | 1700 rpm |
| Recuperation | yes | no | no | no | optional | yes | optional |
Technology of the Rim Drive Pod 15
-
A rim drive accelerates from zero to full speed within 1.5 seconds.
-
No wear parts and 100% maintenance-free. The bearings are water-lubricated and last for thousands of hours under normal use.
-
Very high efficiency, only slightly higher than with normal electric motors with shaft
-
Recuperation possible while sailing or standing still in the water. The batteries recharge while driving at 4 knots or more.
-
Rim Drive also offers special underwater motors for very deep waters (used in submarines)
-
You can freely choose the direction of rotation of the motors, which optimizes maneuverability, especially in dual motor configurations
Range of the Rim Drive Pod 15
Travel time and range depend on the battery. In an example with a 6,000 kg boat and a 20 kWh battery, we have the following measurements:
✓ At full load, the battery lasts just over an hour and 15 minutes. The boat reached a speed of 14 km/h. The range was 17 km.
✓ At 1/2 power, the driving pleasure lasts for a 2.5-hour trip on the water at a marching speed of 11 km/h and a range of 27 km.
✓ Those who plan longer and more leisurely tours on the water can go much further with less power. At 1/5 of the power, a speed of 8 km/h was achieved for 7 hours. In total, a range of 56 km with just one battery charge.
Installation of a pod motor
Due to the current cookie settings, the Youtube video cannot be displayed.
Rim Drive batteries
Rim Drive uses its own LiFePO4 batteries. The motors are perfectly matched to the lithium batteries. The batteries have a relatively good price-performance ratio on the market and a comparatively light weight. Alternatively, the greenboatsolutions batteries from the solar sector are also suitable.
You can see on the individual motors which batteries are suitable due to their performance and capacity. The larger the battery, the better the price per kWh. The 48 V 200 Ah batteries are available for less than 500€ per kWh.
Special feature of external rotor / ring motors
The special feature of the Rim Drive Technology drives is the shape of the ring, so that the drives do not have a classic propeller shaft. The design has the advantage that nothing can get caught in a shaft and if damaged, the propeller blades can be replaced individually. The propeller blades are very sturdy and resistant.
The electric winding is located in the outer housing (stator). The housing itself is cast and does not contain any seals. The inner housing (rotor) with the magnets and propeller blades is also cast, so that no corrosion can occur.
The manufacturer Rim Drive Technology
The Dutch company Rim Drive Technology offers electric boat motors with a power range from 0.5 kW to 50 kW. The existing products are constantly being further developed and new variants are regularly added.
All components are designed and developed in the Netherlands. RDT is committed to the spread of electric drives and compensates for all CO2 emissions. In total, RDT has been developing the motors since 2018.
The prices of the motors are clearly in the premium segment, but especially in the higher power range, there is not much that can beat the manufacturer!
Brochure Power Curves
Reference document - Rim Drive Technology
Catalogue - Rim Drive Technology
User manual POD
